Mini-Circuits FL086 Series Flexible Coaxial Cables

Mini-Circuits FL086 Series Flexible Coaxial Cables feature a 6mm bend radius, making them ideal for making connections in tight spaces. The 50Ω FL086 Coaxial Cables feature a frequency range from DC to 40GHz with excellent return loss and low insertion loss. The construction includes a silver-plated, copper-clad steel center conductor. The outer shield is tin soaked copper braid, which minimizes signal leakage and at the same time is flexible for easy bend. Dielectric is low loss PTFE. The connectors have a passivated stainless-steel coupling nut over a gold plated connector body with a gold plated brass center conductor. These cables are RoHS compliant and meet ML-STD-348 standards.

Features

Flexible cables with a tight, 6mm bend radius
2.92mm male connectors
DC to 40GHz frequency range
Low loss, 0.6dB to 1.5dB (dependant on length), up to 40GHz
Excellent return loss
- 31dB typical up to 18GHz
- 28db (±1) typical up to 40GHz

Power handling capability at 25°C, sea level
- 198W at 0.5GHz
- 13W at 40GHz
Insulated outer jacket standard
Connector interface meets MIL-STD-348
-55°C to +105°C operating temperature range
RoHS compliant

Applications

Replacement for custom bent 0.086″ semi-rigid cables
Communication receivers and transmitters
Military and aerospace systems

Environmental and test chambers
Test accessories

Mini-Circuits FL086 Series Flexible Coaxial Cables

Features

Applications

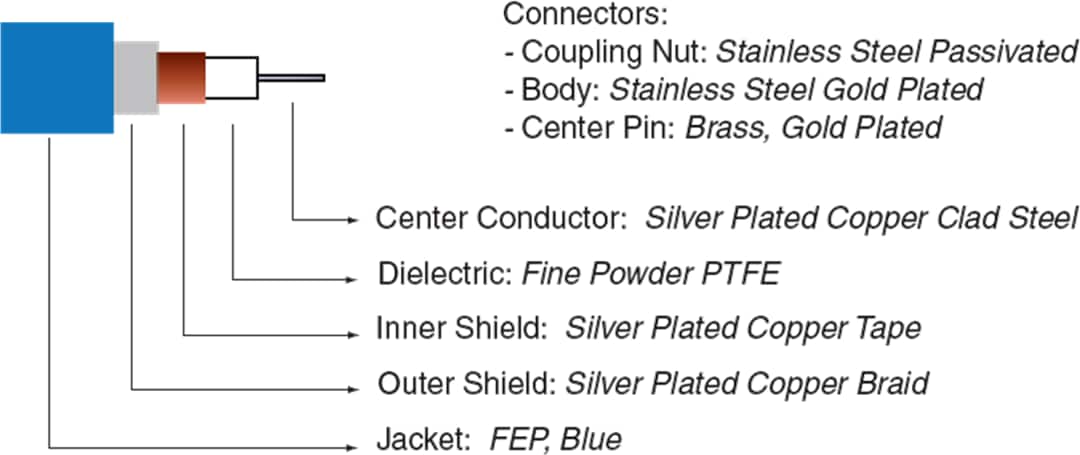

Cable Contruction

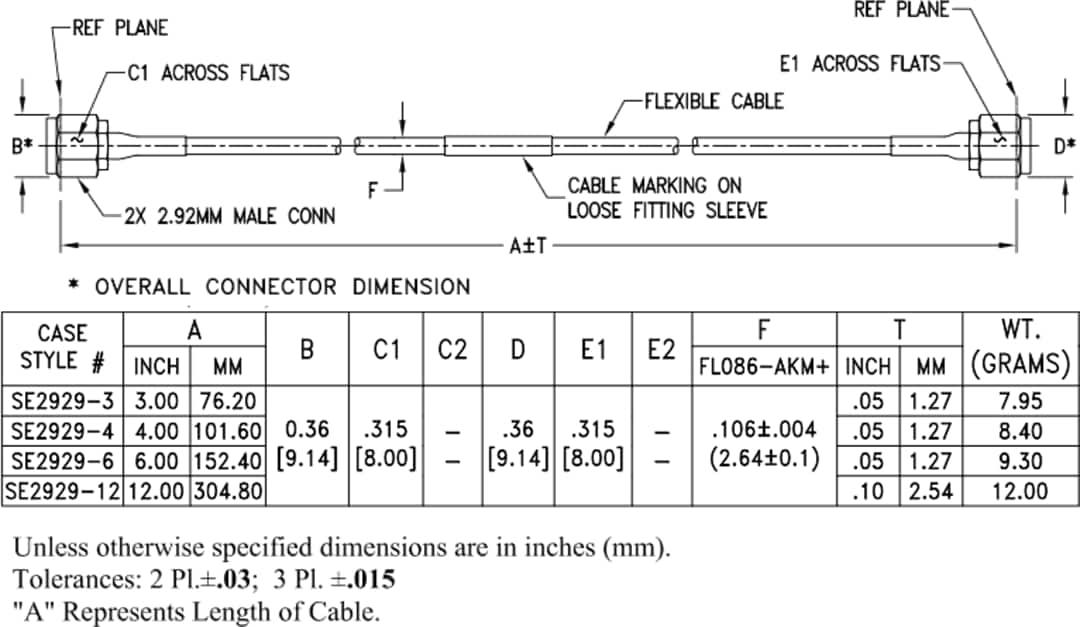

Outline Dimensions
