Mini-Circuits EP2 2-Way & EP4 4-Way Power Splitter/Combiners

Mini-Circuits EP2RCW, EP2RKU+, EP4RKU+, and EP4KA+ are surface-mount MMIC 2-Way and 4-Way Power Splitter/Combiners designed for wideband operation from DC to 8GHz/18GHz/31GHz. Mini-Circuits EP2 and EP4 Splitter/Combiners offer excellent isolation, excellent amplitude unbalance, and support many applications requiring high performance across a wide frequency range, including all the LTE bands through WiMax and Wi-Fi®.

Features

Designed for wideband operation from DC to 8GHz/18GHz/31GHz
Excellent isolation
- 21dB typical at 4GHz (EP2RCW+)
- 21dB typical at 12GHz (EP2RKU+)
- 20dB typical at 12GHz (EP4KA+)
- 20dB typical at 9GHz (EP4RKU+)

2-Way-0° (EP2) or 4-Way-0° (EP4)
50Ω impedance
-55°C to +105°C operating temperature range

Applications

WiMAX
ISM
Instrumentation
Radar

WLAN
Satellite communications
LTE

Mini-Circuits EP2 2-Way & EP4 4-Way Power Splitter/Combiners

Features

Applications

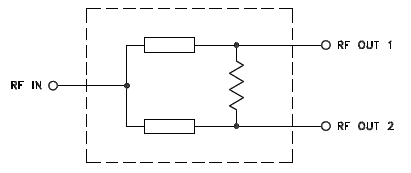

EP2 Simplified Schematic

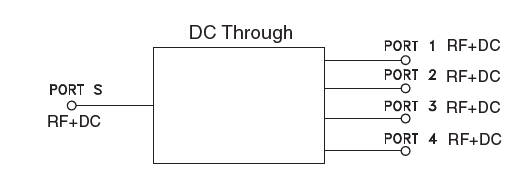

EP4 Schematic
