Mini-Circuits DCW-11-722+ Ceramic Directional Coupler

Mini-Circuits DCW-11-722+ Ceramic Directional Coupler offers a wideband frequency range of 2400MHZ to 7200MHz and excellent return loss for input/output ports that is ideal for signal-tap. Mini-Circuits DCW-11-722+ Directional Coupler offers an ultra-small size (0603 case size), temperature stability, and LTCC construction. Applications include ISM, WiMAX, Wi-Fi®, UMTS, PCS, and LTE.

Features

  • Wideband, 2400MHz to 7200MHz
  • Excellent return loss for input/output ports, ideal for signal-tap
  • Ultra-small size, 0603 (1.6mm x 0.8mm)
  • Temperature stable
  • LTCC construction

Applications

  • ISM
  • WiMAX
  • Wi-Fi
  • UMTS
  • PCS
  • LTE

Specifications

  • 50Ω impedance
  • -55°C to +105°C operating temperature range
  • 1W input power
  • 0.7dB typical mainline loss
  • 13dB typical coupling
  • 12dB directivity
  • 17dB return loss

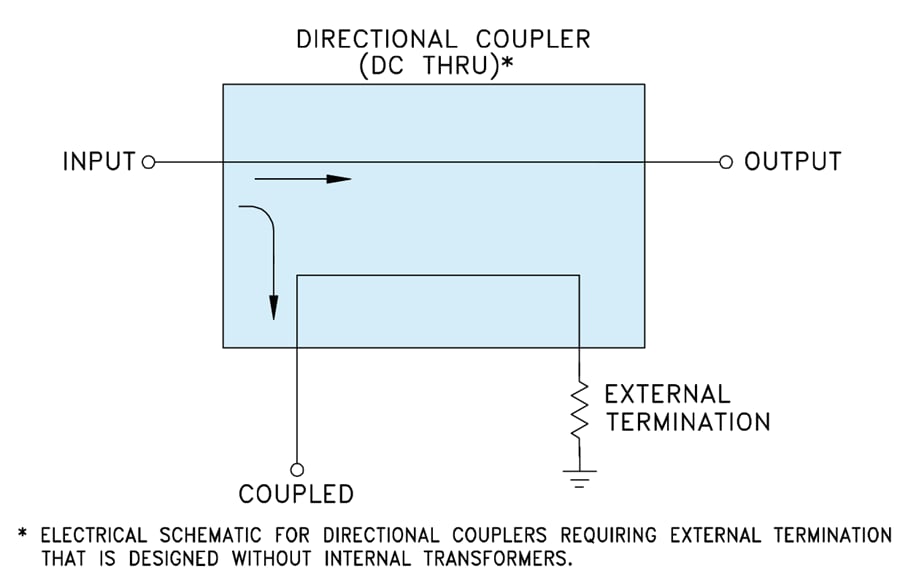

Electrical Schematic

Schematic - Mini-Circuits DCW-11-722+ Ceramic Directional Coupler
