Mini-Circuits CBL 50Ω FLEXTest™ Cables

Mini-Circuits CBL 50Ω FLEXTest™ Cables offer DC to 18GHz wideband coverage with extra-rugged construction and strain reliefs for longer life. These cables feature stainless steel connectors for long mating-cycle life. The triple shield cable delivers excellent shielding effectiveness over a temperature range of -55°C to +105°C.

Features

Wideband DC to 18GHz coverage
Extra rugged construction with strain relief for longer life
Stainless steel connectors for long mating-cycle life
Useful over a -55°C to +105°C temperature range
Triple shield cable for excellent shielding effectiveness

Flexible for easy connection and bend radius
Superior stability of insertion loss, VSWR, and phase vs. flexing
1ft to 6ft lengths
6-month guarantee
RoHS compliant (+ at the end of the part)

Applications

High volume production test stations
Research and development labs
Environmental and temperature test chambers

Replacement for OEM test port cables
Field RF testing
Cellular infrastructure site testing

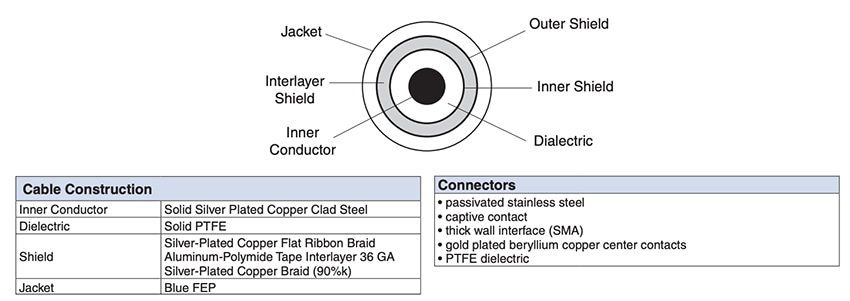

Cable Cross Section
