Mikroe ZigBee Click

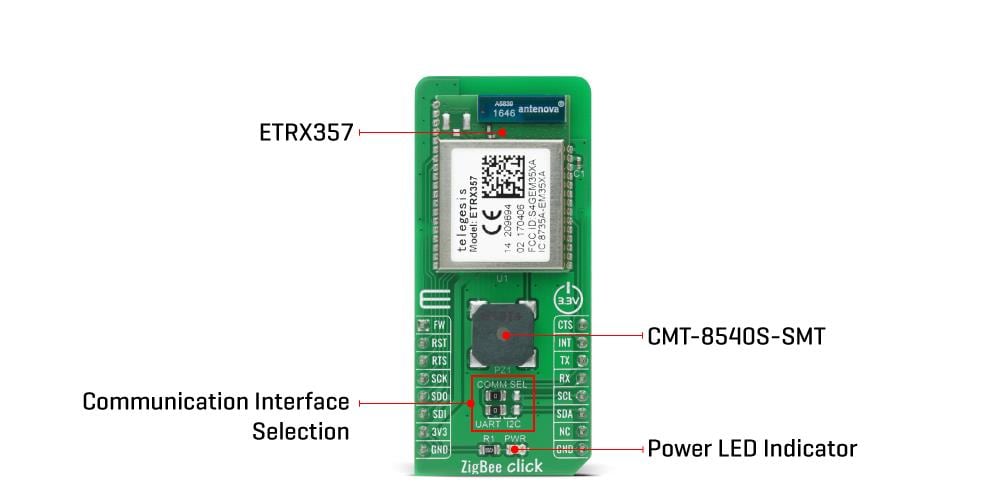

Mikroe ZigBee Click features a fully integrated Zigbee transceiver with a 32-bit ARM® Cortex M3TM microprocessor, Flash and RAM memory, and peripherals. The board has a Silicon Labs ETRX357 2.4GHz Zigbee Radio Module. It is designed for easy integration and to provide a fast, simple, and low-cost wireless mesh networking interface. It communicates with the MCU over the UART interface using the unique AT-style command line interface. This allows for quick integration of Zigbee technology without complex software development. This board is fitting for ZigBee smart energy applications, wireless alarms and security, remote monitoring, and other electronic applications that need wireless communication.

Features

On-board modules
- Silicon Labs ETRX357 Zigbee Radio Module integrating a 2.4GHz compliant transceiver with many advanced peripherals
Low power consumption
Can act as an end device
Router or coordinator
Password protected
2.4GHz ISM band

RF data rate up to 250Kbps
I²C, UART, SPI, GPIO interface
mikroBUS compatibility
57.15mm x 25.4mm click board size
3.3V input voltage

Applications

ZigBee smart energy applications
Wireless alarms and security

Remote monitoring
Other electronic applications that need wireless communication
