Mikroe XPRO-Adapter Click

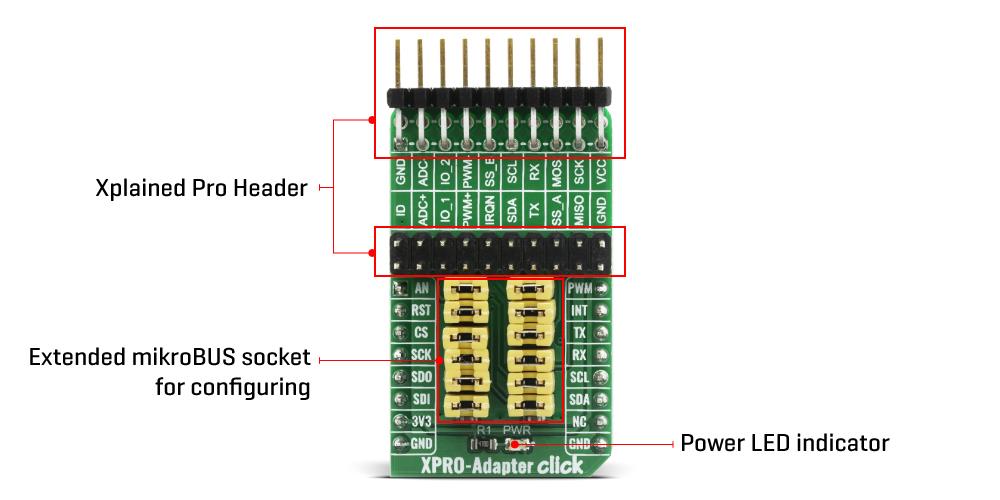

Mikroe XPRO-Adapter Click connects Microchip Xplained Pro Expansion Boards with hundreds of mikroBUS based host boards. The Xplained Pro expansion header is a 20-pin connector that connects to Microchip/Atmel Expansion Boards. The click also has duplicated Xplained Pro and mikroBUS headers for reconfiguring to individual boards or pinouts. The XPRO-Adapter Click allows the use of Microchip add-on boards on mikroBUS without additional wiring.

Features

Onboard modules: Xplained Pro boards have one or more dual row, 20-pin, 2.54mm female extension header
Support for many serial interfaces
3.3V logic operation
Remappable and configurable I/Os

Interface: I²C, UART, SPI, PWM, Analog, GPIO
Compatibility: mikroBUS
Click board size: M (42.9mm x 25.4mm)
Input voltage: 3.3V

Applications

Adapter board for connecting Microchip Xplained Pro expansion boards with hundreds of mikroBUS-based host boards
