Mikroe WiFi 8 Click

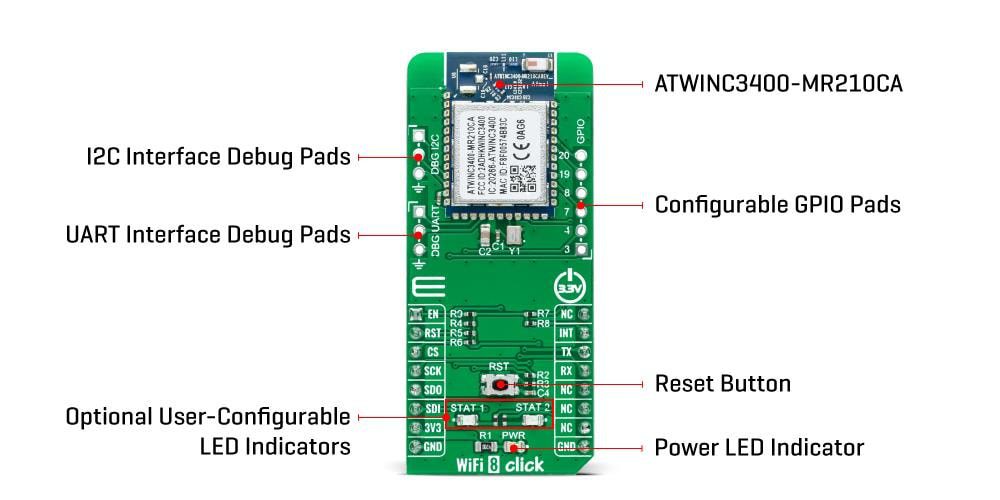

Mikroe WiFi 8 Click features the Microchip Technology ATWINC3400-MR210CA wireless Bluetooth 5.0 certified module. It’s optimized for low-power and high-performance mobile applications. The module comes with integrated power and low-noise amplifiers, transmit/receive switch (for WiFi and Bluetooth). It also has a power management unit, an integrated 2.4GHz chip antenna, and an additional 32.768kHz clock for Sleep operation. It utilizes highly optimized IEEE 802.11 Bluetooth coexistence protocols and provides Serial Peripheral Interface to interface with the host controller.

Features

On-board modules
- Microchip Technology ATWINC3400-MR210CA RF/Baseband/Medium Access Control (MAC) network controller (Bluetooth 5.0 certified module) optimized for low power and high-performance mobile applications
IEEE 802.11 RF/PHY/MAC
Simultaneous use of both Bluetooth Low Energy and WiFi
Integrated 2.4GHz chip antenna
Superior sensitivity and range

SPI host interface with UART/I²C for debug
SPI, UART interface
mikroBUS compatibility
L (57.15mm x 25.4mm) click board size
3.3V input voltage

Applications

Highly integrated and cost-effective applications
Industrial wireless control

Bluetooth gateway
Smart home applications
