Mikroe Waveform 2 Click

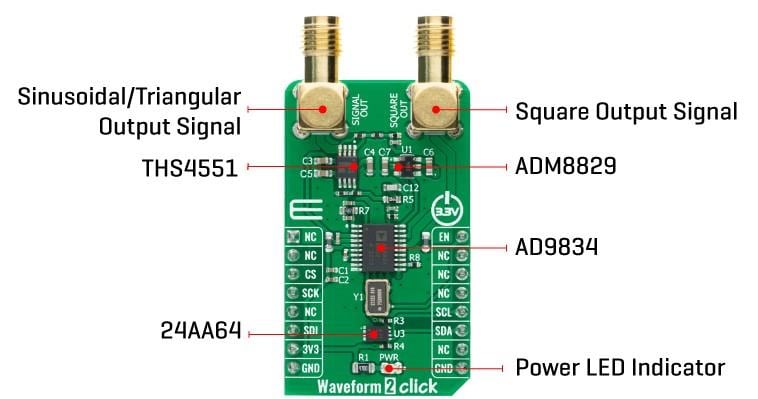

Mikroe Waveform 2 Click features a direct digital synthesis device for waveform generator applications. The board features the Analog Devices AD9834 75MHz low power DDS device. It can produce high-performance sine/triangle/square outputs. The device provides the capability for phase and frequency modulation and has an on-board comparator. This allows the production of a square wave signal for clock generation. A 75MHz clock rate resolution of 0.28Hz can be achieved, and a 1MHz clock rate can be tuned to 0.004Hz resolution. The board is ideal for power-sensitive applications, frequency stimulus/waveform generation, frequency phase tuning and modulation, and more.
