Mikroe Vibro Motor 3 Click

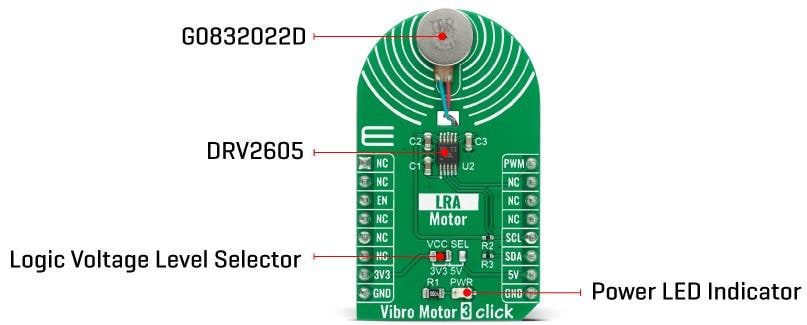

Mikroe Vibro Motor 3 Click is ideal for adding simple haptic feedback in designs. The board features the Jinlong Machinery & Electronics, Inc. G0832022D linear resonant actuator (LRA). It generates vibration/haptic feedback in the Z plane, perpendicular to the motor’s surface. The G0832022D is driven by the DRV2605 flexible Haptic/Vibra driver and vibrates in the Z-axis, which is perpendicular to the face of the vibration motor. It draws only 19mA at 0.6V while producing a G force of 0.55 GRMS, making it ideal for battery-powered wearables.

Features

On-board modules
- Jinlong Machinery & Electronics, Inc. G0832022D coin-sized linear resonant actuator that generates vibration/haptic feedback in the Z plane, perpendicular to the motor’s surface
Low power consumption
Vibration force in Z-axis
High reliability

Excellent choice for devices with limited battery capacity
Interface
- I²C, PWM
Compatibility
- mikroBUS
Click board size
- M (42.9mm x 25.4mm)
Input Voltage
- 3.3V or 5V

Applications

Applications with limited battery capacity
Where crisp haptic feedback and low power consumption is required
