Mikroe Vibra Sense 2 Click

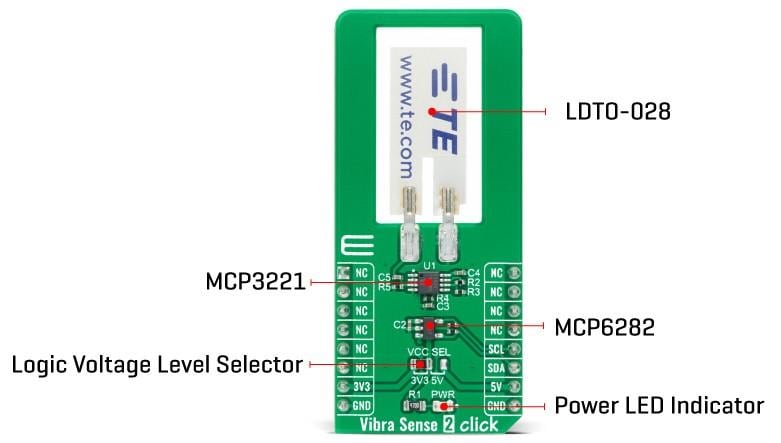

Mikroe Vibra Sense 2 Click has a piezo sensor suitable for vibration measurements. The board features the TE Connectivity Measurement Specialties LDT0-028K flexible 28μm thick piezoelectric PVDF polymer film. It has screen-printed silver ink electrodes, laminated to a 0.125 mm polyester substrate, and fitted with two crimped contacts. The sensing element of the LDT0-028K comprises a cantilever beam loaded by an additional mass to offer high sensitivity at low frequencies. This board is ideal for vibrating sensing applications, security systems, body movement, and more.

Features

On-board modules
- TE Connectivity Measurement Specialties LDT0-028K flexible 28μm thick piezoelectric PVDF polymer film with screen-printed silver ink electrodes, laminated to a 0.125 mm polyester substrate, and fitted with two crimped contacts
Low power consumption
High sensitivity
Excellent measuring performance

High receptivity for strong impacts with a wide dynamic range
Interface
- I²C
Compatibility
- mikroBUS
Click board size
- L (57.15mm x 25.4mm)
Input Voltage
- 3.3V or 5V

Applications

Vibrating sensing applications
Security systems
Body movement
