Mikroe VCP Monitor Click

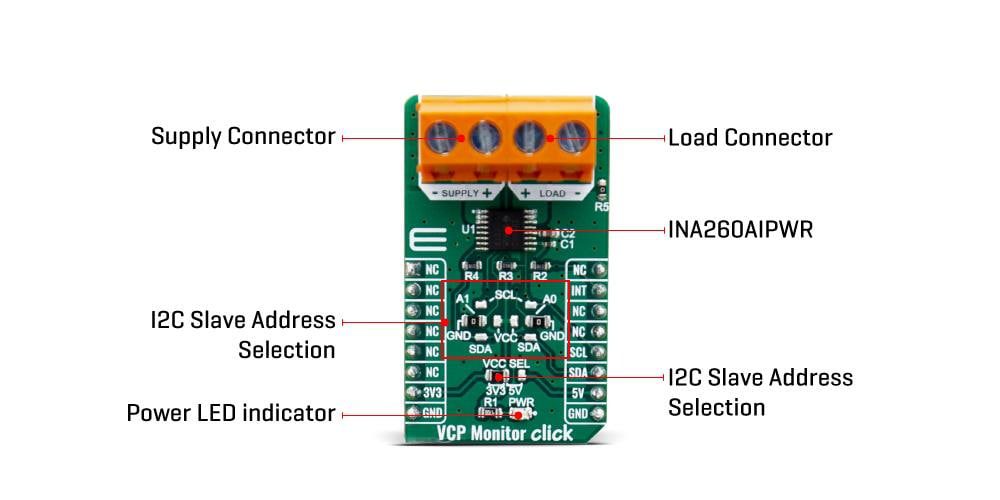

Mikroe VCP Monitor Click is an add-on board power monitor system based on the TI INA260AIPWR Precision Digital Current and Power Monitor. The INA260AIPWR features low-drift, and an integrated precision shunt resistor. This allows the VCP Monitor Click to monitor current, voltage, and power. The integrated current-sensing resistor ensures measurement stability over temperature and simplifies printed-circuit board layout difficulties common in high-precision current sensing measurements.

Features

  • On-board modules: NA260AIPWR, a digital-output, current, power, and voltage monitor with an I2C and SMBus™-compatible interface from Texas Instruments
  • Current sense resistance: 2mΩ, tolerance equivalent to 0.1%, 15A continuous from -40°C to +85°C, 16 programmable addresses
  • Interface: I2C
  • Compatibility: mikroBUS
  • Click board size: M (42.9mm x 25.4mm)
  • Input voltage: 3.3V or 5V

Applications

  • Power management system
  • Battery chargers
  • Power supplies

Overview

Mikroe VCP Monitor Click
