Mikroe VAV Press Click

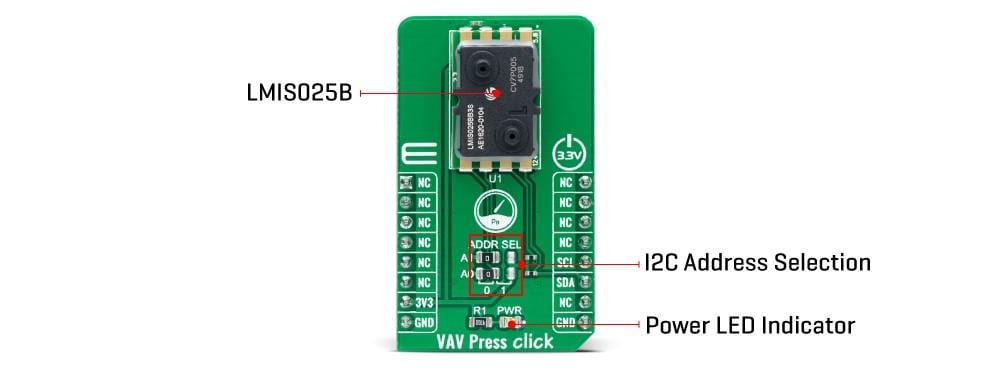

Mikroe VAV Press Click features the First Sensor LMIS025B low differential pressure sensor. It’s based on thermal flow measurement of gas through a micro-flow channel integrated within the sensor chip. The innovative LMI technology features superior sensitivity. It is ideal for ultra-low pressures ranging from 0 to 25Pa. The extremely low gas flow through the sensor ensures high immunity. This is due to dust contamination, humidity, and long tubing compared to other flow-based pressure sensors.

Features

On-board modules
- First Sensor LMIS025B low differential pressure sensor that offers a digital output for reading pressure over the specified pressure span
Low power consumption
Ultra-low pressure ranges
Based on thermal microflow measurement
High flow impedance

Outstanding long-term stability
On-chip temperature sensor
Two modes of operations
I²C interface
mikroBUS compatibility
M (42.9mm x 25.4mm) click board size
3.3V input voltage

Applications

Pressure measurements in automotive, industrial, and consumer applications
