Mikroe UWB Click

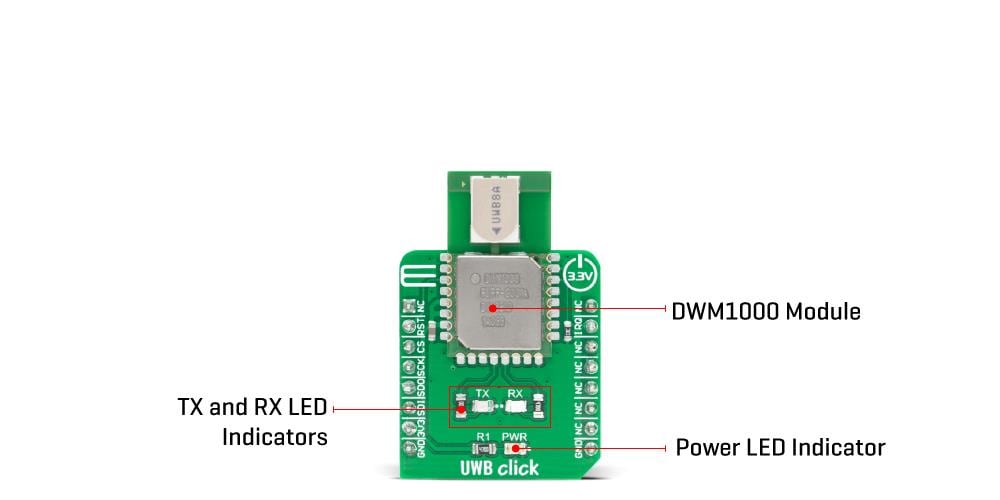

Mikroe UWB Click is used in 2-way ranging or TDOA location systems to locate assets to a precision of 10cm and supports data rates of up to 6.8Mbps. This board features the Decawave Limited DWM1000 module based on Decawave’s DW1000 Ultra-Wideband (UWB) transceiver. It has a frequency range from 3.5GHz to 6.5GHz and a precise location of tagged objects. It also features up to 6.8Mbps data rates, low power consumption, and more. Communication with the MCU can be achieved through a standard SPI serial interface. This board is optimized for applications in real-time location systems and wireless sensor networks.

Features

On-board modules
UWB Click is based on Decawave’s DWM1000, UWB compliant wireless transceiver module from Decawave Limited.
Low power consumption

High precision
GPIO, SPI interface
28.6mm x 25.4mm click board size
3.3V input voltage

Applications

Realtime location systems and wireless sensor networks across a variety of markets including agriculture, building control and automation, factory automation, healthcare, safety & security, warehousing & logistics, and a range of others.
