Mikroe UART MUX 2 Click

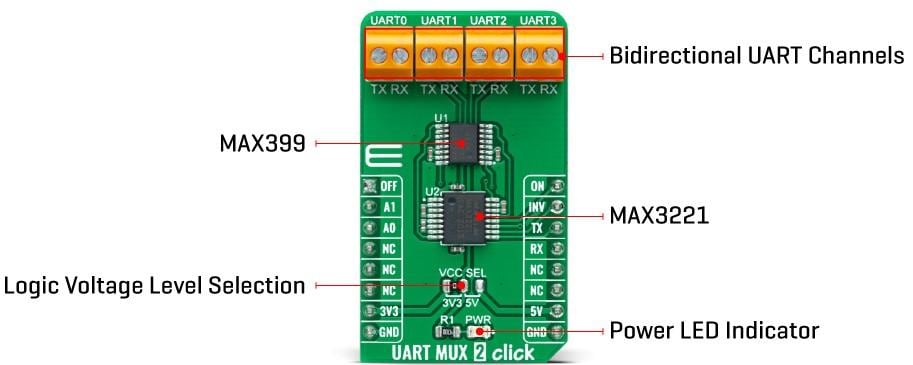

Mikroe UART MUX 2 Click enables pseudo-multidrop RS232 transmission. The UART MUX 2 board features the Maxim Integrated MAX399 precise CMOS analog multiplexer that allows four remote RS-232 transceivers to share a single UART. It offers fast switching speeds with a transition time of less than 250ns and low on-resistance less than 100Ω while retains CMOS-logic input compatibility and fast switching. Channel selection is performed through a set of specific GPIO pins and possesses additional functionality like the manual ON/OFF feature.

Features

On-board modules
- Maxim Integrated MAX399 precise CMOS analog multiplexer that enables pseudo-multidrop RS232 transmission
- Texas Instruments MAX3221 RS232 line driver and receiver
Low power consumption
High precision

Rail-to-rail signal handling
Operates up to 250 kbps
Power-down feature
Valid RS232 signal indicator
UART interface
mikroBUS compatibility
M (42.9mm x 25.4mm) Click board size
3.3V or 5V input voltage

Applications

Industrial and instrumentation
Communications
Data-acquisition systems
