Mikroe Touchpad 4 Click

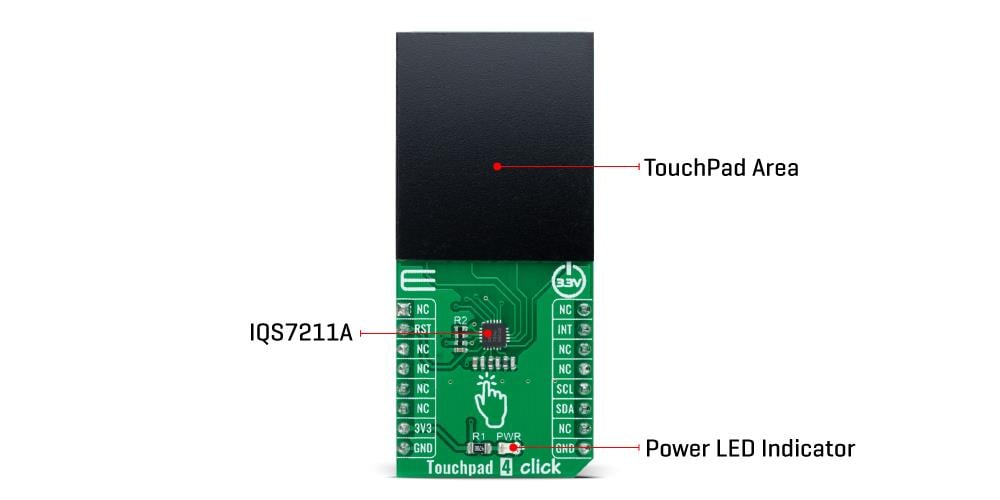

Mikroe Touchpad 4 Click is used to easily integrate projected capacitive touch into applications. The board features the Azoteq IQS7211A tiny capacitive touch controller. A low-power dedicated wake-up touch controller launches a complete touchscreen sensing solution with a 25.4mm x 29mm trackpad dimension. It has best-in-class sensitivity, and power consumption. It is characterized by embedded gesture engine recognition for simple gestures (tap, swipes, hold) and built-in noise detection and filtering.

Features

On-board modules
- Azoteq IQS7211A tiny trackpad controller designed for multitouch applications using a projected capacitance touch panel
Low power consumption
High resolution
Fast response
Long-term activation supported by environmental tracking

Embedded gesture engine recognition for simple gestures (tap, swipes, hold)
I²C interface
mikroBUS compatibility
L (57.15mm x 25.4mm) click board size
3.3V input voltage

Applications

Human-machine interfaces
Keypad or scrolling functions
Single-finger gesture-based interfaces
