Mikroe TouchPad 3 Click

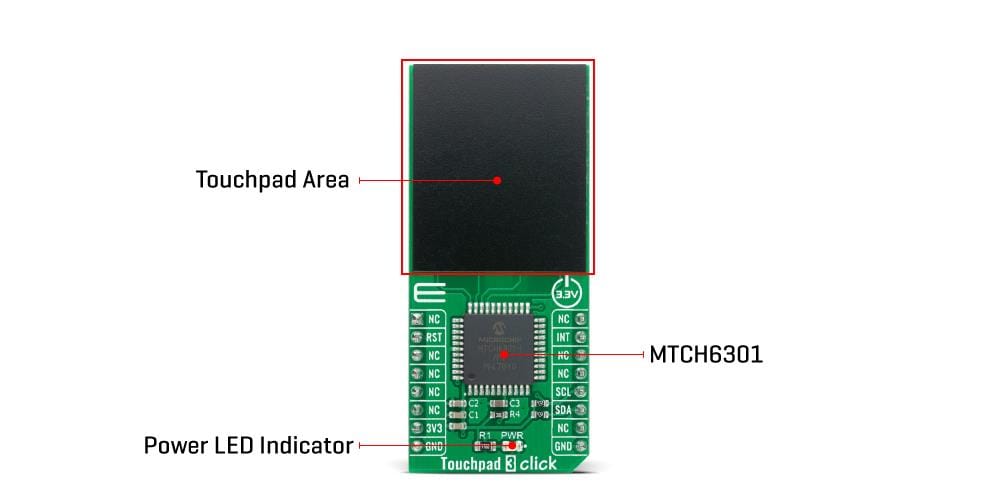

Mikroe TouchPad 3 Click is used to integrate projected capacitive touch into applications. The TouchPad 3 features the Microchip MTCH6301 turnkey capacitive touch controller to use popular multitouch and gesture interfaces. The controller combines Self and Mutual capacitive scanning for XY touchscreens and touchpads. This enables several features, including single and dual-touch drawing, the reporting of 11 single-finger gestures, and the detection of up to 10 touches.

Features

On-board modules
- Microchip MTCH6301 turnkey capacitive touch controller that allows users to quickly and easily integrate projected capacitive touch into applications
Multi-touch feature
Gesture detection and reporting
Single and dual touch drawing

Self and mutual signal acquisition
Interface
- I²C
Compatibility
- mikroBUS
Click board size
- L (57.15mm x 25.4mm)
Input Voltage
- 3.3V

Applications

Human-machine interfaces
Kkeypad or scrolling functions
Single-finger gesture-based interfaces
