Mikroe Temperature & Humidity 14 Click

Mikroe Temperature & Humidity 14 Click contains one of the smallest and most accurate humidity and temperature sensors on the market. The board features the TE Connectivity Measurement Specialties HTU31D highly accurate digital relative humidity sensor with temperature output. The board provides fast response time, precision measurement, low hysteresis, and sustained performance even when exposed to extreme temperatures up to 125°C and humidity environments. It has a power consumption down to 3.78μW and an accuracy of ±2%RH and ±0.2°C.

Features

On-board modules
- TE Connectivity Measurement Specialties HTU31D digital relative humidity sensor with temperature output
High reliability and environmental robustness
Full interchangeability with no calibration required in standard conditions
Quick recovery after long periods in the saturation phase

Low power consumption
Fast response
I²C interface
mikroBUS compatibility
Small 28.6mm x 25.4mm click board size
3.3V or 5V input voltage

Applications

Relative humidity and temperature measuring applications
Weather stations
Reliable monitoring systems

Mikroe Temperature & Humidity 14 Click

Features

Applications

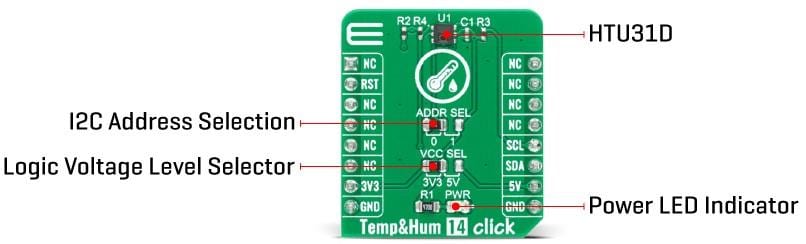

Board Layout
