Mikroe TDC Click

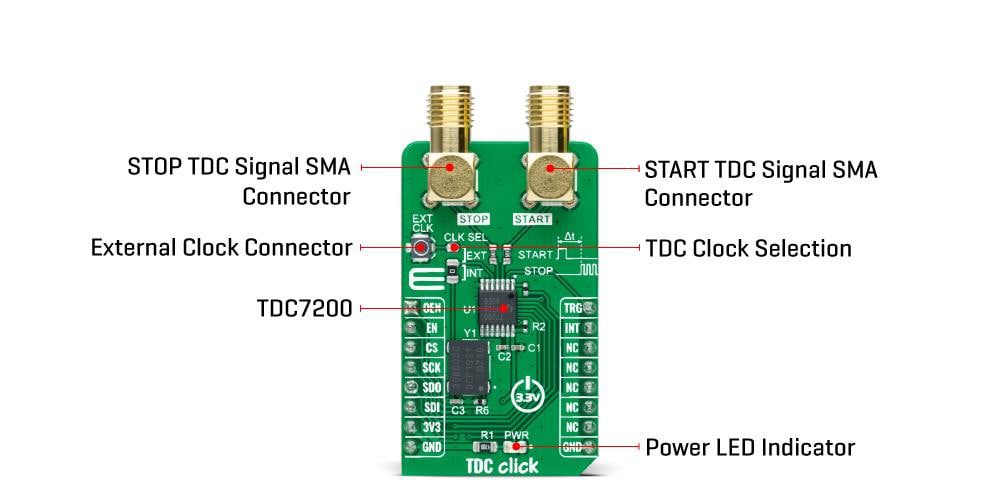

Mikroe TDC Click recognizes events and provides a digital representation of the time occurred. The board features the Texas Instruments TDC7200 time-to-digital converter (TDC). The TDC performs the function of a stopwatch and measures the elapsed time-of-flight (TOF) between a START pulse and up to five STOP pulses. The ability to measure from START to multiple STOPs gives the flexibility to select which STOP pulse yields the best echo performance.

Features

On-board modules
- Texas Instruments TDC7200 time-to-digital converter for time-of-flight (ToF) applications for LIDAR and ultrasonic
Low power consumption
Autonomous Multi-Cycle Averaging mode
SPI interface for configuration and register access
Supports up to 5 STOP signals

Internal self-calibrated time base which compensates for drift over time and temperature
SPI interface
mikroBUS compatibility
M (42.9mm x 25.4mm) click board size
3.3V input voltage

Applications

Time-of-flight and flow meter applications where zero and low flow measurements require high accuracy
