Mikroe Surface Temp 2 Click

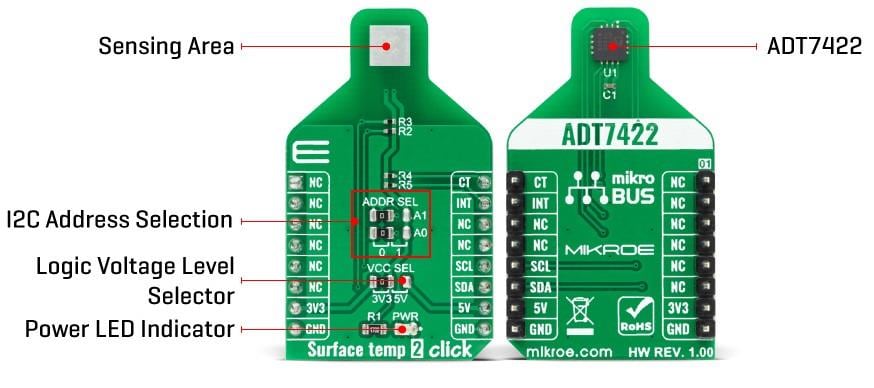

Mikroe Surface Temp 2 Click contains a high accuracy temperature sensor offering breakthrough performance over a wide industrial temperature range. The board features the Analog Devices ADT7422 16-bit I²C temperature sensor with a precision ADC in the range of 25°C to 50°C with a resolution of 0.0078°C and an accuracy of ± 0.1°C. It does not require additional calibration and is an excellent choice for RTD and thermistor replacement.

Features

On-board modules
- Analog Devices ADT7422 high accuracy 16-bit digital temperature sensor with programmable interrupt and critical temperature indicator
Low power consumption
No calibration needed
Long-term stability and reliability

High accuracy for industrial instrumentation and medical applications
I²C interface
mikroBUS compatibility
M (42.9mm x 25.4mm) click board size
3.3V or 5V input voltage

Applications

RTD and thermistor replacement
Medical equipment
Food transportation and storage

Environmental monitoring
HVAC
