Mikroe Stepper 16 Click

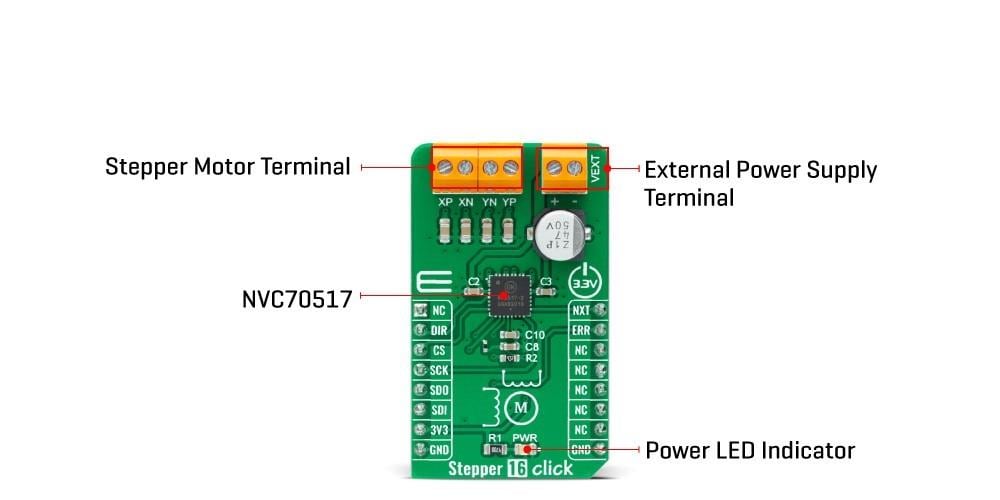

Mikroe Stepper 16 Click features the ON Semiconductor NCV70517 micro-stepping stepper motor driver. The NCV70517 contains a current-translation table and takes the next micro-step depending on the clock signal on the NXT input pin and the status of the DIR pin. It also provides an error message if an electrical error, an undervoltage, or an elevated junction temperature is detected.

Features

On-board modules
- ON Semiconductor NCV70517 integrated motor-driver solution for bipolar stepper motors with integrated current sense and current regulation
Dual H-bridge for 2-phase stepper motors
Fully integrated current-sensing and current-regulation
Integrated current translator

5 step modes from full-step up to 16 micro-steps
PWM current control with automatic selection of fast and slow decay
SPI, GPIO interface
mikroBUS compatibility
M (42.9mm x 25.4mm) click board size
3.3V, external input voltage

Applications

General-purpose stepper motor applications in automotive, industrial, and applications with fluctuating battery supplies

Overview
