Mikroe Stepper 14 Click

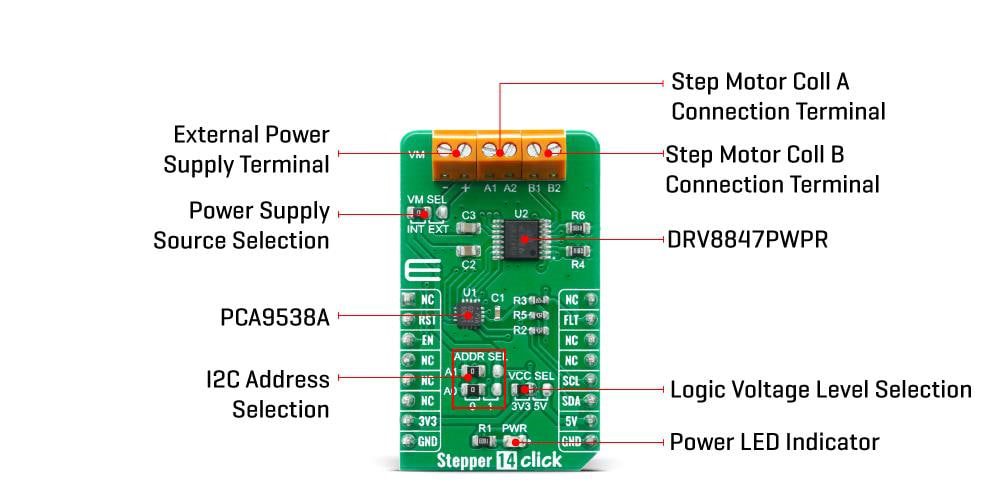

Mikroe Stepper 14 Click features the Texas Instruments DRV8847PWPR step motor driver. The board provides a bipolar step motor control, and features an H-bridge bipolar step motor driver. It supports full-, half-, quarter-, or eighth-step modes. The Stepper 14 also has a port expander to communicate with a minimal number of pins through the mikroBUS™ I²C bus.

Features

On-board modules
- Texas Instruments DRV8847PWPR Dual Full-Bridge 18V 1A Stepper Motor Driver
- NXP PCA9538A 8bit I/O Expander with Serial Interface
Dual H-bridge motor driver
Single or dual brushed DC motors
One bipolar stepper motor

Solenoid loads
Multiple control interface options
GPIO, I²C interface
mikroBUS compatibility
M (42.9mm x 25.4mm) click board size
3.3V or 5V input voltage

Applications

Refrigerator damper and ice maker
Washers, dryers, and dishwashers
Electronic point-of-sale (ePOS) printers

Stage lighting equipment
Miniature circuit breakers and smart meters etc.
