Mikroe SPI Extend Click

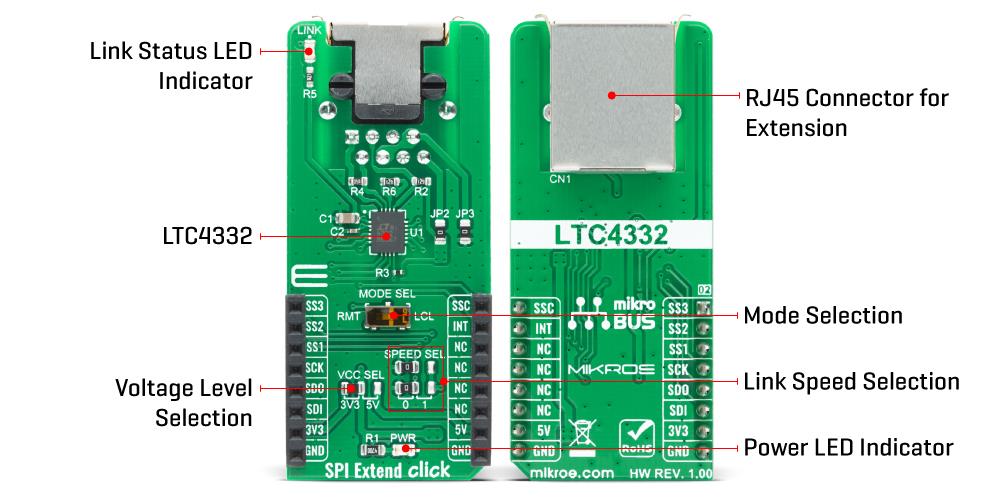

Mikroe SPI Extend Click is used for applications that require extending the SPI communication bus over a long distance. The board features the Analog Devices LTC4332 SPI Slave Extender device. The LTC4332 can transmit SPI data using a ±60V fault protected differential transceiver. It includes an interrupt signal, up to 2MHz over two twisted-pair cables. The extended common-mode range and high common-mode rejection on the differential link provide tolerance to large ground differences between nodes. The board can also provide a control interface using a separate slave select for configuration and fault monitoring.

Features

On-board modules
- SPI Extend Click is based on Analog Devices LTC4332 2MHz point-to-point SPI bus extender designed for operation in high noise industrial environments
Operation over long distances
Extended slave selects
Overvoltage protection

Low power consumption
GPIO, SPI interface
mikroBUS compatibility
57.15mm x 25.4mm click board size
3.3V or 5V input voltage

Applications

Applications that require extending the SPI bus over a long distance
Industrial control

Sensor installations
Lighting and sound system control
