Mikroe Smart Sens Click

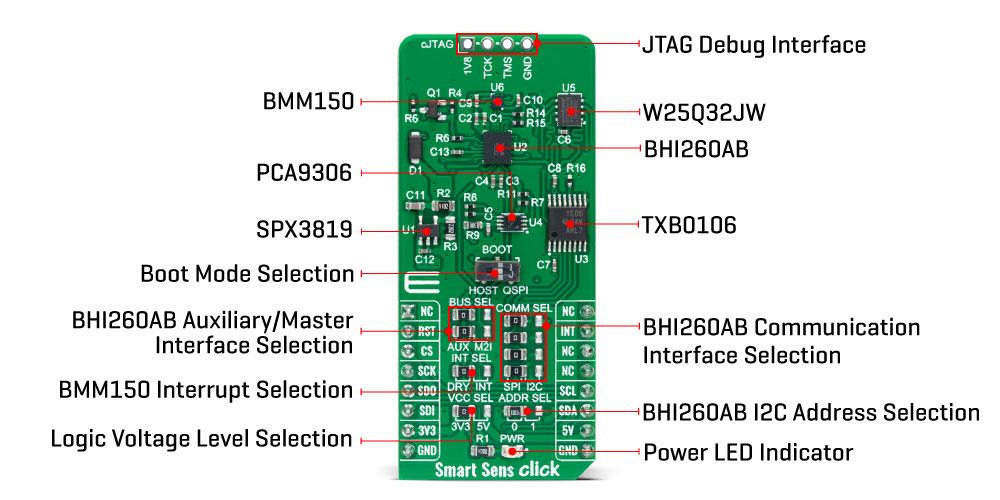

Mikroe Smart Sens Click utilizes the Bosch Sensortec BHI260 and BMM150, an ultra-low-power programmable smart sensor and magnetometer. The BHI260 includes a programmable and powerful 32-bit MCU, a 6-axis IMU, and a robust software framework. In addition to its internal functions, it also performs signal data processing from the BMM150 that performs measurements of the magnetic field in three perpendicular axes. In addition to these primary functions, the board allows to select the desired serial interface, use the debug interface, and select BOOT mode.

Features

On-board modules
- Bosch Sensortec BHI260 programmable smart sensor combining accelerometer, gyroscope, and fusion software
- Bosch Sensortec BMM150 standalone geometric sensor
Smart sensor hub with integrated IMU sensor
Environmental sensor and magnetometer
Bus master interface selection
Boot mode selection

Selectable communication
JTAG debugging
I²C, SPI interface
mikroBUS compatibility
L (57.15mm x 25.4mm) click board size
3.3V or 5V input voltage

Applications

Always-on sensor data processing algorithms at the lowest power consumption
