Mikroe RTC 14 Click

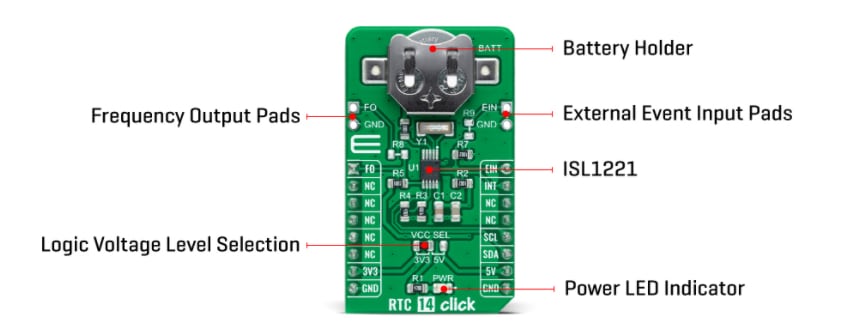

Mikroe RTC 14 Click measures the passage of time and features the Renesas ISL1221, a low-power RTC with battery-backed SRAM and event detection. The RTC 14 Click Board features low power consumption, a clock/calendar, and security and event functions. Additionally, along with the ISL1221, the RTC 14 Click is equipped with a button cell battery holder compatible with the 3000TR battery holder, suitable for 12mm coin cell batteries.

The RTC 14 Click operates with both 3.3V and 5V logic voltage levels selected via the V_CC SEL jumper. This permits both 3.3V and 5V capable MCUs to use the I²C communication lines correctly.

Features

On-board modules
- Renesas ISL1221 low-power RTC with battery-backed SRAM and event detection
Low power consumption
Clock/calendar feature
Security and event functions
Frequency output with 15 selectable frequencies

Single alarm
Battery back-up
I²C interface
mikroBUS™ compatibility
M (42.9mm x 25.4mm) click board size
3.3V or 5V input voltage

Applications

Security
Warranty monitoring

Data collection
Recording due to enhanced security functionality
