Mikroe RS232 to I2C Click

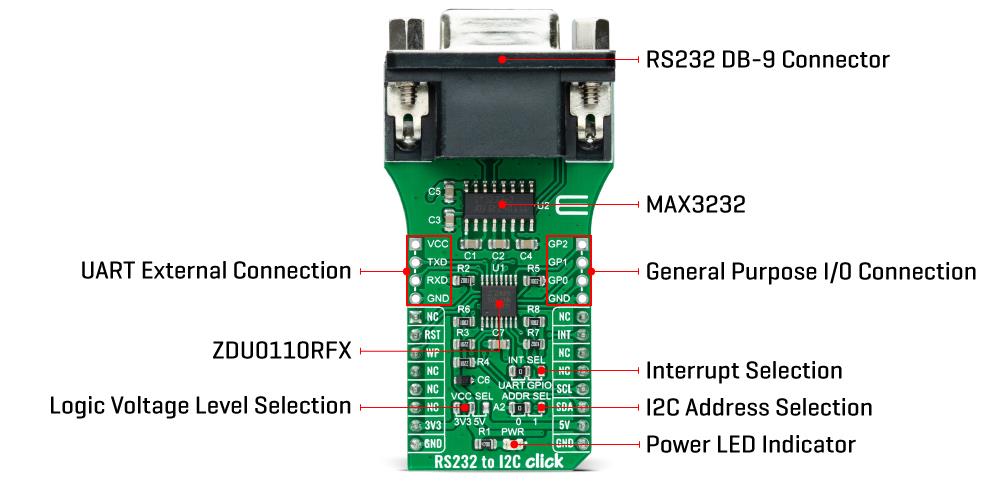

Mikroe RS232 to I2C Click features the Littelfuse ZDU0110RFX bridge between a UART port and an I²C bus. It represents the connection between the MCU and the MAX3232 RS232 line driver and receiver. The ZDU0110RFX provides full-duplex asynchronous communications with a 128 byte FIFO buffer. 64 bytes each are allocated to receive and transmit operations. It also contains a 4kbit EEPROM and GPIO with programmable interrupt capability; programmable interrupts and interrupt lines for UART and GPIO notifications.

Features

On-board modules
- Zilog ZDU0110RFX bridge between a UART port and an I2C bus, which at the same time represents the connection between the MCU and the RS232 line driver and receiver, the MAX3232
Control via I²C interface
4KB built-in EEPROM
Interrupt lines for UARTs and GPIOs for notification

Low power consumption
High reliability
I²C interface
mikroBUS compatibility
L (57.15mm x 25.4mm) click board size
3.3V or 5V input voltage

Applications

Communication bridges
Process and automation control
Terminal servers
