Mikroe RAQ Click

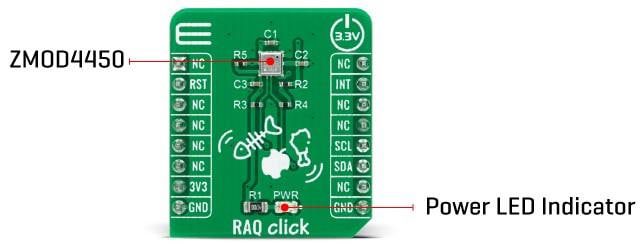

Mikroe RAQ Click is used in refrigeration air quality (RAQ) applications and features the Renesas Electronics Corporation ZMOD4450. This gas sensor module is designed for detecting gases associated with food ripening or rotting. The module’s sense element consists of a heater element on a silicon-based MEMS structure and a metal temperature sensor. It measures the MOx conductivity, which is a function of the gas concentration, and measurement results read via the I²C interface. This makes it ideal for refrigerator systems control or as monitors for fruit and vegetable quality, shipping, and storage conditions.

Features

On-board modules
- Renesas Electronics Corporation ZMOD4450 gas sensor module designed to detect typical gases inside refrigeration applications associated with food ripening or rotting
Low power consumption
Excellent choice for low-voltage and low-power battery applications
Measurement of gases associated with food ripening and storage

Configurable methods of operation
Built-in non-volatile memory
Interface
- I²C
Compatibility
- mikroBUS
Click board size
- S (28.6mm x 25.4mm)
Input Voltage
- 3.3V

Applications

Refrigerator systems control or as monitors for fruit and vegetable quality, shipping, and storage conditions
