Mikroe Radiation Click

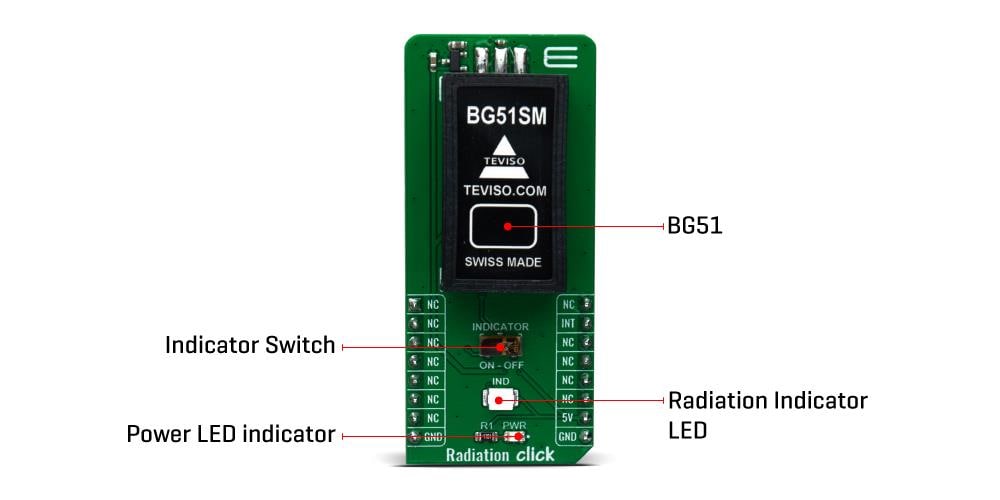

Mikroe Radiation Click features the BG51 radiation sensor from Teviso Sensor Technologies. The BG51 radiation sensor is based on an array of customized PIN diodes. The Radiation Click has a solid-state sensor combined with high immunity to electrostatic fields makes it ideal for state-of-the-art designs and for upgrading existing designs of detecting beta and gamma radiation and X-rays.

Features

On-board modules: BG51 radiation sensor is based on an array of customized PIN diodes
Detects beta and gamma radiation and X-rays
Detector sensitivity: 5cpm/μSv/h
High immunity to RF and electrostatic fields
Linear response over a wide temperature range (-30°C to +60°C)
Interface: GPIO
Compatibility: mikroBUS
Click board size: L (57.15mm x 25.4mm)
Input Voltage: 5V

Applications

Equipment for detecting radioactivity in medical environment
Radiation monitors for nuclear safeguards and security
Gamma detector to detect illicit nuclear material
Natural sciences courses and practical lab experiments
