Mikroe PROFET Click 15A

Mikroe PROFET Click 15A features the Infineon Technologies BTS70041EPPXUMA1 single-channel, high-side power switch. The switch has an embedded protection and diagnosis feature. This switch has a driving capability suitable for 15A loads featuring a ReverSave™, which causes the power transistor to switch on in case of reverse polarity.

Features

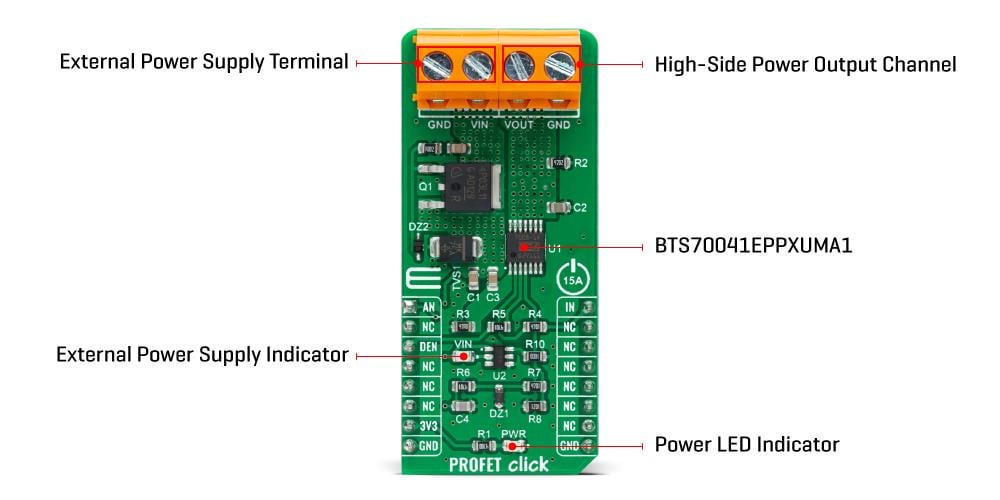

On-board modules
- Infineon Technologies BTS70041EPPXUMA1 single-channel, smart high-side power switch with embedded protection and diagnosis feature
High-side switch with diagnosis and embedded protection
reverseON for low power dissipation in reverse polarity
UVLO/OVLO

Wide external power supply range with LED indication
Analog, GPIO interface
mikroBUS compatibility
L (57.15mm x 25.4mm) click board size
3.3V, external input voltage

Applications

Resistive, inductive, and capacitive loads
Replaces electromechanical relays, fuses, and discrete circuits
