Mikroe Pressure 16 Click

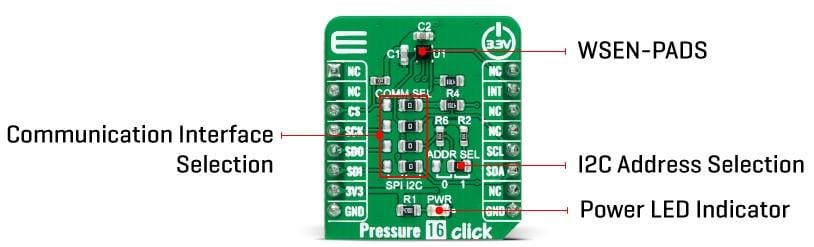

Mikroe Pressure 16 Click features the Würth Elektronik WSEN-PADS (2511020213301) high-precision MEMS-based digital absolute pressure sensor. The sensor has a fully-calibrated 24-bit pressure output to provide accurate atmospheric pressure data. It also has a configurable host interface that supports I²C and SPI serial communications and an intelligent on-chip motion-triggered interrupt feature.

Features

On-board modules
- Würth Elektronik WSEN-PADS high-resolution, ultra-compact piezoresistive absolute pressure sensor
Low power consumption
High precision
MEMS-based piezo-resistive sensing principle
Fully calibrated 24-bit pressure output
Selectable output data rate up to 200Hz

Embedded temperature sensor
Interrupt feature
I²C, SPI interface
mikroBUS compatibility
S (28.6mm x 25.4mm) click board size
3.3V input voltage

Applications

Weather station equipment
Altimeter and barometer

Industrial
Consumer

Overview

Mikroe Pressure 16 Click
