Mikroe Pressure 15 Click

Mikroe Pressure 15 Click features the STMicroelectronics LPS27HHW ultra-compact piezoresistive absolute pressure sensor that functions as a digital output barometer. The device comprises a sensing element and an IC interface that communicates through I²C or SPI serial interface from the sensing element to the application. The sensing element, which detects absolute pressure in a range of 260 up to 1260hPa, consists of a suspended membrane manufactured using a dedicated process developed by STMicroelectronics.

Features

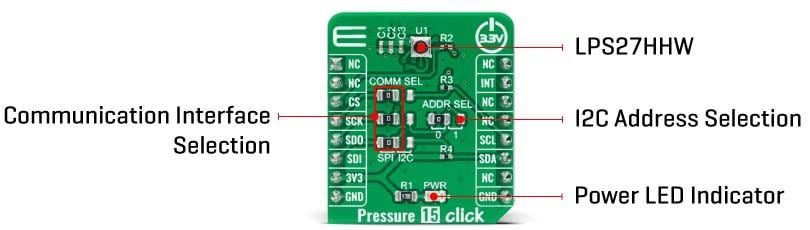

On-board modules
- STMicroelectronics LPS27HHW high-resolution, ultra-compact piezoresistive absolute pressure sensor that functions as a digital output barometer
Low power consumption
High precision
Wide absolute pressure measurement range
Selectable serial interface
Selectable I²C slave address

Interrupt/data-ready feature
I²C, SPI interface
mikroBUS compatibility
S (28.6mm x 25.4mm) click board size
3.3V input voltage

Applications

Weather station equipment
Altimeter and barometer applications

Industrial
Consumer applications
