Mikroe Power MUX 2 Click

Mikroe Power MUX 2 Click contains a highly configurable power mux and features the Texas Instruments TPS2120 multiplexer with an automatic switchover feature. The board prioritizes the main supply when present and quickly switches to auxiliary supply when the main supply drops. During switchover, the voltage drop is controlled to block reverse current before it happens and provide uninterrupted power to the load with minimal hold-up capacitance.

Features

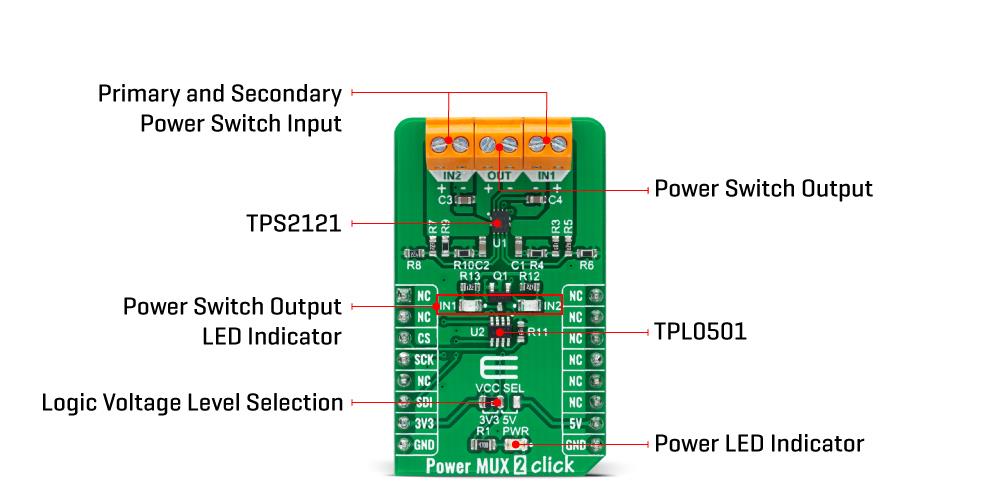

On-board modules
- Texas Instruments TPS2120 highly configurable power mux with an automatic switchover feature
- Texas Instruments TPL0501 256-taps digital potentiometer
Low power consumption
Automatic switchover
Output current limit

Uninterrupted power solution
SPI interface
mikroBUS compatibility
M (42.9mm x 25.4mm) click board size
3.3V or 5V input voltage

Applications

Backup and standby power
Input source selection
Various systems having multiple power sources
