Mikroe Oximeter 5 Click

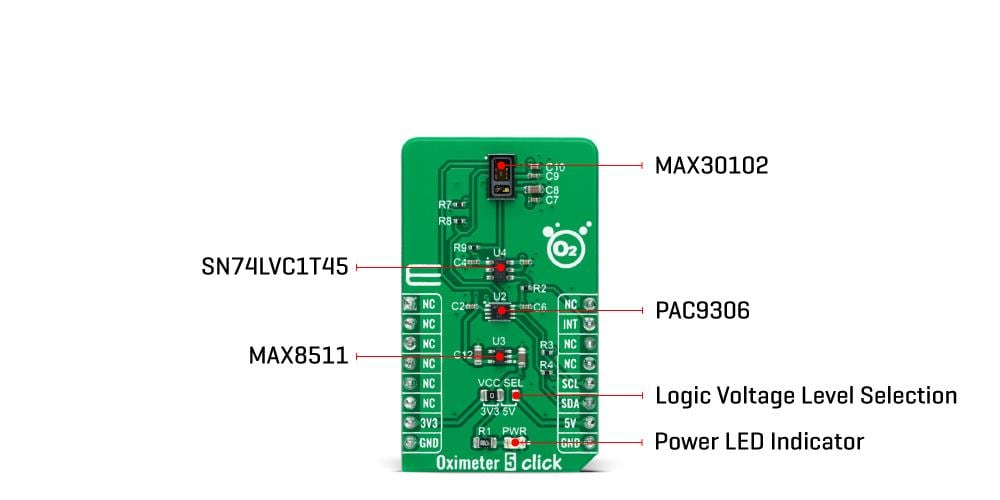

Mikroe Oximeter 5 Click features the Analog Devices MAX30102 integrated pulse oximetry and a heart-rate monitor module. The MAX30102 includes internal LEDs, photodetectors, optical elements, and low-noise electronics with ambient light rejection. It operates on a single 1.8V power supply acquired from mikroBUS™ power rails for the internal LEDs, communicating through a standard I²C compatible interface. The MAX30102 can be shut down through software with zero standby current, allowing the power rails to remain powered at all times.

Features

On-board modules
- Analog Devices MAX30102 high-sensitivity pulse oximeter and heart-rate sensor from Maxim Integrated, now part
Integrated optical components
Fully integrated ADC
LED drivers
Timing core
Low power consumption

Fast data output capability
Designed for ultralow direct optical reflections
I²C interface
mikroBUS compatibility
M (42.9mm x 25.4mm) click board size
3.3V or 5V input voltage

Applications

Used for optical pulse oximetry and health monitoring applications
