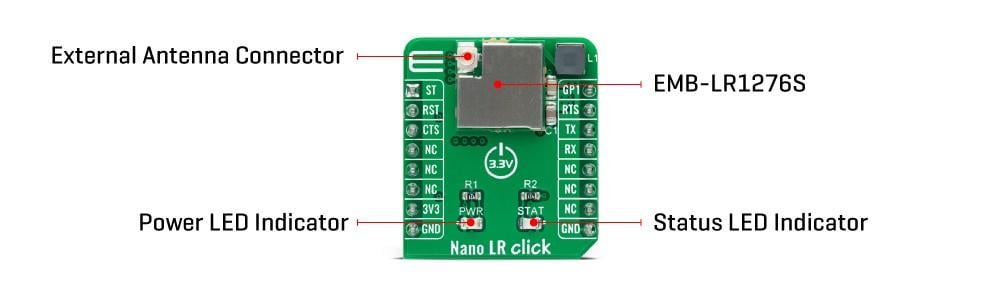

Mikroe Nano LR Click

Mikroe Nano LR Click features the Embit EMB-LR1276S RF technology-based SRD transceiver, which operates at a frequency of 868MHz. It is capable of achieving long-range communication, immune to interferences thanks to the spread spectrum modulation feature, as well as the low power consumption

Features

On-board modules
- Embit EMB-LR1276S sub-1GHz wireless module that supports the LoRaWAN long-range wireless protocol
Radio Region
Worldwide
Low power consumption
868MHz and 915MHz radio bands
256KB of Flash

Up to 40 KB of SRAM
Long-range and FSK modulation
UART interface
mikroBUS compatibility
S (28.6mm x 25.4mm) click board size
3.3V input voltage

Applications

Long-range IoT networks
Security systems
Alarm networks

Overview

Mikroe Nano LR Click
