Mikroe Nano GPS 2 Click

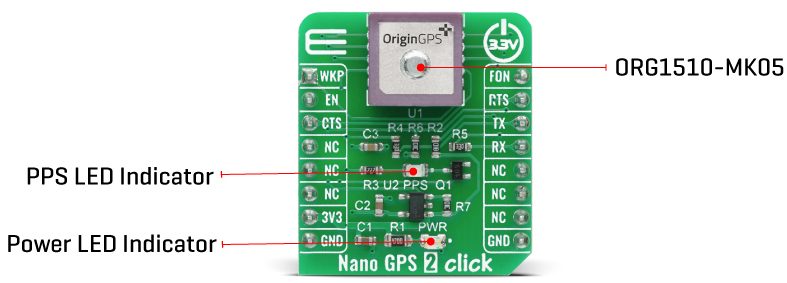

Mikroe Nano GPS 2 Click features the OriginGPS ORG1510-MK05 GPS module with an integrated patch antenna. The ORG1510-MK05 is a very small multi-constellation antenna module offering high-performance in many applications. The module has the lowest energy per fix ratio, unparalleled accuracy, and extremely fast fixes even under challenging signal conditions. Conditions include built-up urban areas, dense foliage, or even indoor.

Features

On-board modules
- Nano GPS 2 Click uses the Multi Micro Hornet ORG1510-MK05 module
Superior sensitivity and outstanding performance, with time to first fix (TTFF) of less than 1 second, high accuracy of less than 2.5m, and tracking sensitivity down to -165dBm

GPIO, UART interface
mikroBUS compatibility
S (28.6mm x 25.4mm) click board size
3.3V input voltage

Applications

Road navigation devices
Public transport
Wearable devices
