Mikroe Motion 2 Click

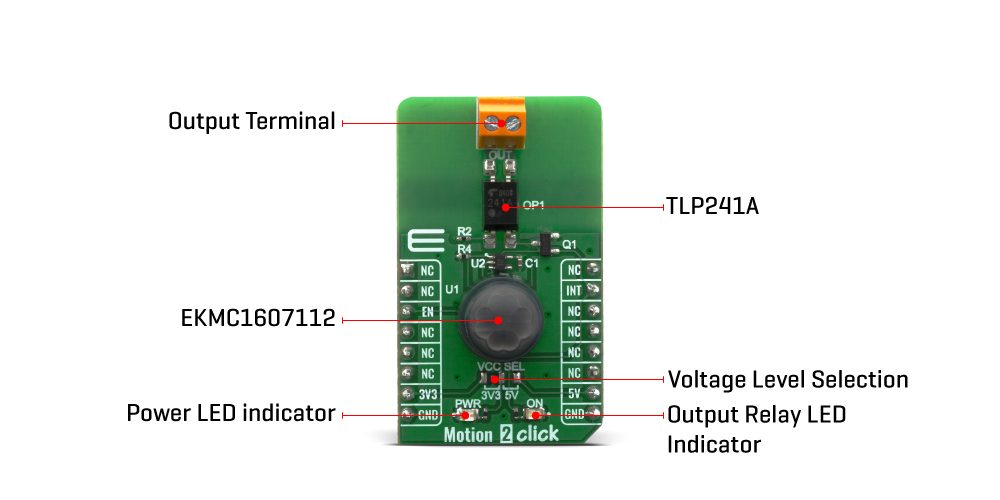

Mikroe Motion 2 Click is based on the Panasonic EKMC1607112 PIR motion sensor used as a human motion detector. The Toshiba TLP241A photo relay is also featured on the board. It is used to provide reinforced galvanic isolation for the external signals used to drive some external high power electronic equipment when motion is detected. It allows up to 40V between the SSR contacts in OFF state, and currents up to 2A while in ON state. This is thanks to a very low ON-state resistance.

Features

On-board modules: EKMC1607112 PIR motion sensor; Toshiba TLP241A photo relay
32 detection zones with 90°C of horizontal and vertical detection angles
Interface: GPIO
Compatibility: mikroBUS
Click board size: M (42.9mm x 25.4mm)
Input voltage: 3.3V or 5V

Applications

Alarm systems
Light switch controllers
Automatic doors and similar systems where human presence needs to be detected
