Mikroe Monarch Adapter Click

Mikroe Monarch Adapter Click connects compatible Monarch Go LTE-M modems from Sequans to development boards or prototype devices. The click provides connection to cloud servers with AT commands. The Monarch Go LTE-M modem component with an embedded antenna is ideal for a broad range of IoT applications. These include telemetry, vending machines, agriculture sensor applications, asset and transportation trackers, hardware tools, and home security monitoring applications.

Features

  • On-board modules
    • 0541670208 connector from Molex
  • Support SEQUANS Monarch Go modem
  • GPIO, UART interface
  • mikroBUS compatibility
  • S (28.6mm x 25.4mm) click board size
  • 3.3V or 5V input voltage

Applications

  • Connect Sequans Monarch Go to development boards with mikroBUS sockets

Overview

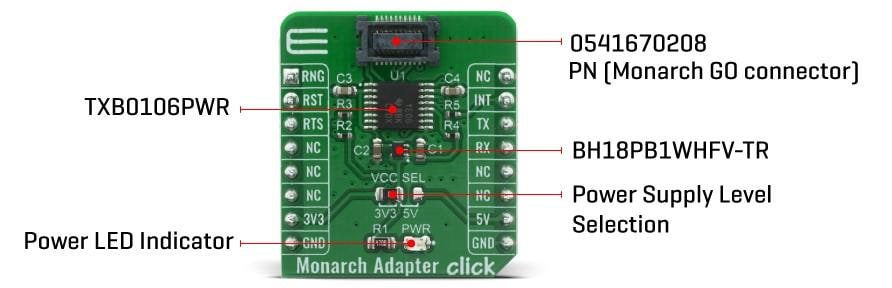

Mikroe Monarch Adapter Click

Mikroe Monarch Adapter Click
