Mikroe MIKROE-5784 Hall Current 16 Click

Mikroe MIKROE-5784 Hall Current 16 Click is a small add-on board that precisely senses AC/DC. The Mikroe MIKROE-5784 uses the Allegro Microsystems ACS37002 high-accuracy 400kHz current sensor. Adjust its sensitivity and current range with pin-selectable gains, and it detects short circuits with an adjustable overcurrent fault. This Click board™ is ideal for applications needing high-current monitoring and high isolation voltage between high-current and low-voltage sides.

Features

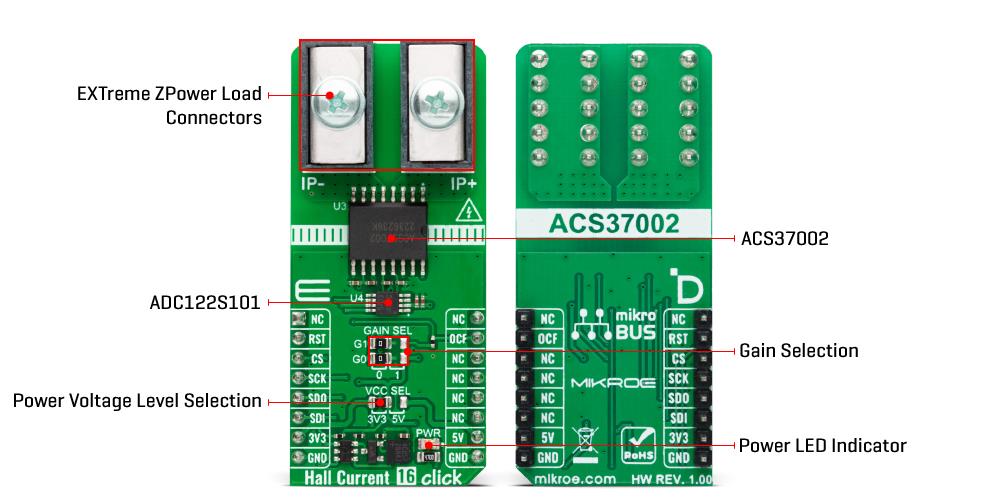

On-board modules
- Allegro Microsystems ACS37002 400KHz high-accuracy current sensor
- Texas Instruments ADC122S101 12-bit A/D converter
Externally configurable gain settings
Adjustable fast overcurrent fault
Differential sensing for high immunity to external magnetic fields
High accuracy

High operating bandwidth for fast control loops
Low internal primary conductor resistance
Highly isolated device
SPI interface
ClickID
mikroBUS compatibility
L (57.15mm x 25.4mm) click board size
3.3V or 5V input voltage

Applications

Development of applications requiring a combination of high-current monitoring and high isolation voltage between the primary high-current and low-voltage sides
