Mikroe MIKROE-5774 Pressure 22 Click

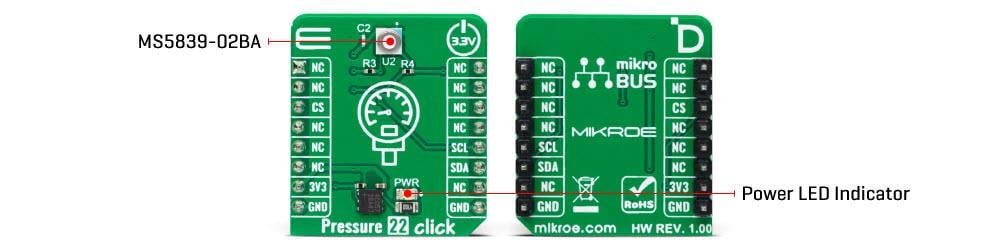

Mikroe MIKROE-5774 Pressure 22 Click is a compact add-on board featuring the TE Connectivity MS5839-02BA digital pressure and temperature sensor. The Mikroe MIKROE-5774 is designed for applications in chlorine and saline environments, with a range of 300 to 1200mbar. This sensor is robust and suitable for harsh conditions due to its gel filling. It’s ideal for developing shallow diving computers, swim watches, fitness trackers, and underwater equipment. Additionally, it’s mikroSDK compliant, simplifies software development, and comes fully tested for use with mikroBUS™ sockets.

Features

On-board modules
- TE Connectivity MS5839-02BA chlorine-resistant digital pressure and temperature sensor
Low-power consumption
Chlorine, and saline-resistant
Water-resistant sealing
Operating in a large pressure range

Up to 10bar for overpressure
Robust gel-filled design allows operation in harsh environments
I²C interface
ClickID
mikroBUS compatibility
S (28.6mm x 25.4mm) click board size
3.3V input voltage

Applications

Development of shallow diving computers
Swim watches
Fitness trackers

Underwater equipment
Diving equipment and computers
