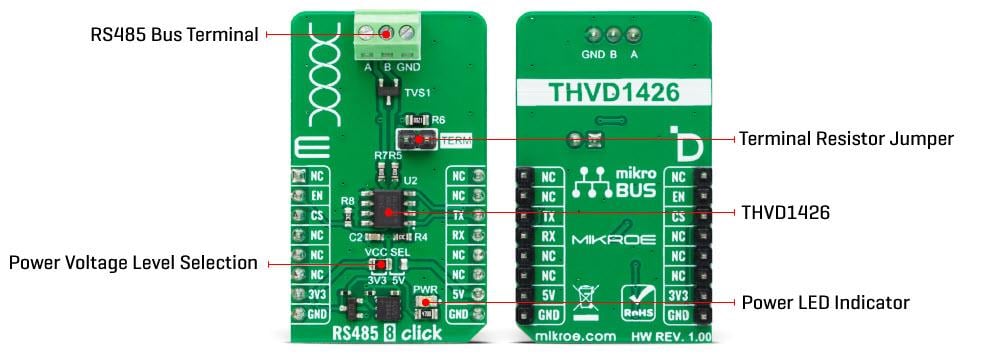

Mikroe MIKROE-5752 RS485 8 Click

Mikroe MIKROE-5752 RS485 8 Click is a compact add-on board for RS485 network communication. The Mikroe MIKROE-5752 uses the THVD1426 RS485 transceiver from Texas Instruments, offering auto-direction control and ESD protection. This transceiver provides bus protection for various events and operates in half-duplex mode at speeds up to 12Mbps. It’s known for low power consumption and glitch-free power-up/power-down, allowing hot plug-in. This Click board™ is ideal for industrial and multi-point applications with long cable runs.

Features

On-board modules
- Texas Instruments THVD1426 RS485 transceiver with auto-direction control and ESD protection
Highly flexible
Selectable power and logic voltage levels half-duplex mode
Optional 120Ω termination resistor jumper on bus pins
600W asymmetrical diode array on bus pins
Bus I/O protection

Low-power consumption
Glitch-free power-up/power-down for hot plug-in capability
Protection features
UART interface
ClickID
mikroBUS compatibility
M (42.9mm x 25.4mm) click board size
3.3V or 5V input voltage

Applications

Development of industrial and multi-point applications over long cable runs
