Mikroe MIKROE-5576 Angle 9 Click

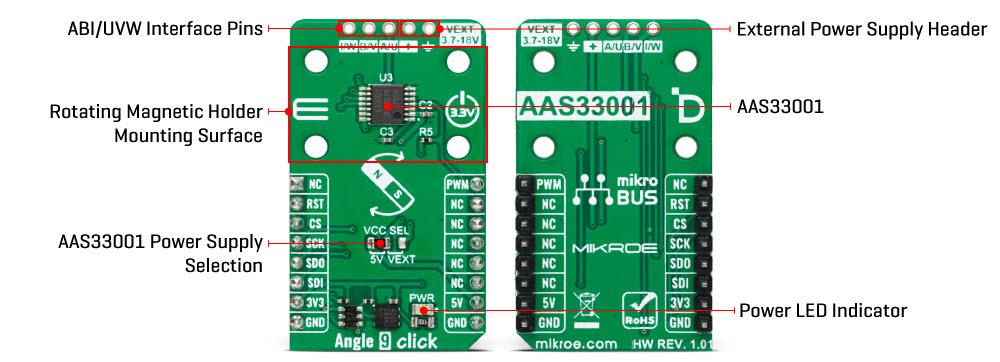

Mikroe MIKROE-5576 Angle 9 Click is a compact add-on board featuring the Allegro Microsystems AAS33001 precision angle sensor. This contactless sensor measures angles from 0° to 360°, rotation speed, and direction. It supports incremental output (ABI) and motor commutation (UVW). Additionally, it has an on-chip EEPROM for storing calibration data. This Mikroe Click board™ is ideal for developing contactless potentiometers, knobs, RC servos, and other angular position measurement solutions.

Features

On-board modules
- Allegro Microsystems AAS33001 precision angle sensor with incremental and motor commutation outputs and on-chip linearization
Contactless angle measurement
Highest reliability and durability
High-resolution output signal
Allows adding rotary magnetic holder for fast prototyping and fast measurement during the development process

Incremental output interface
Motor commutation interface
External power supply
SPI interface
ClickID
mikroBUS compatibility
M (42.9mm x 25.4mm) board size
3.3V, 5V, external input voltage

Applications

Development of contactless potentiometers
Contactless knobs

RC servos
Angular position measurement solutions
