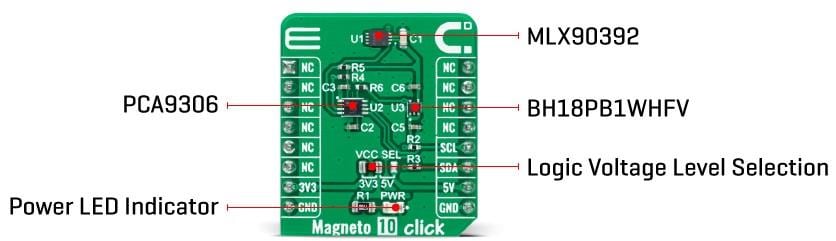

Mikroe Magneto 10 Click

Mikroe Magneto 10 Click features the Melexis Technologies MLX90392 +/-5mT range magnetometer for low-noise applications. The MLX90392 is designed for micropower applications. It measures magnetic fields along the three axes (X, Y being in a plane parallel to the surface of the die, and Z being perpendicular to the surface). Those measurements and the MLX90392’s temperature are converted into 16-bit words, transferred upon request over I²C communication.

Features

On-board modules
- Melexis Technologies MLX90392 three-axis micropower magnetic field sensor for low-noise applications based on a proprietary Triaxis technology
Low power consumption
High precision
Triaxis Hall technology for best-in-class in noise
Integrated temperature sensor
16-bit digital magnetic and temperature output

Selectable operational modes
I²C interface
mikroBUS compatibility
S (28.6mm x 25.4mm) click board size
3.3V or 5V input voltage

Applications

Position sensing requiring a small magnetic range and precise position measurement where noise is a critical design parameter
