Mikroe M-BUS Slave Click

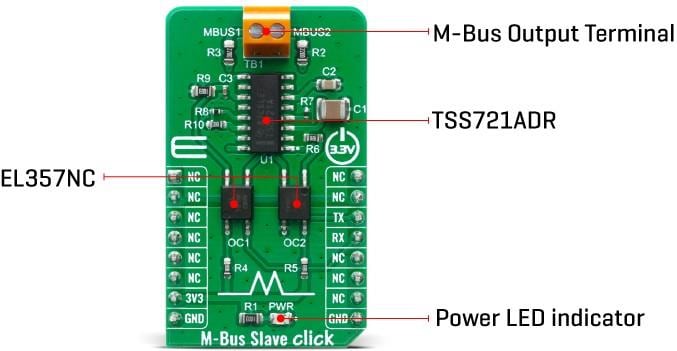

Mikroe M-BUS Slave Click is equipped with the Texas Instruments TSS721A single-chip transceiver for Meter-Bus applications according to the EN1434-3 standard. The connection to the bus is polarity independent and serves as a slave node in the system. M-Bus Slave Click has full galvanic isolation with optocouplers to improve the reliability of the whole circuit. The circuit is supplied by the master via the bus. The circuit offers no additional load for the slave battery. The TSS721A has an integrated power-fail function. This solution is ideal for applications like remote readings of gas, water, heat or electricity, or other types of consumption meters.
