Mikroe LTE IoT 3 Click

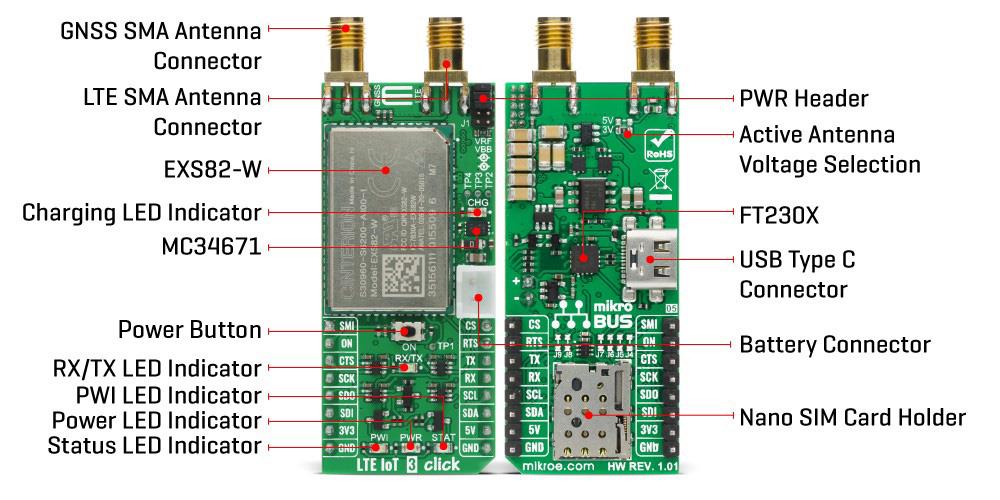

Mikroe LTE IoT 3 Click contains a Low Power Wide Area (LPWA) Wireless IoT module that allows connections to the LTE CAT-M1, CAT NB1/2, and 2G networks. The board features the Thales EXS82-W LTE-IoT Wireless Module with a rich set of Internet protocols and industry-standard interfaces like UART, USB, etc. The board features global IoT connectivity, integrated GNSS support, SMS support, extended coverage range, and reduced power consumption. This makes this single IoT module ideal for device makers while ensuring worldwide reliability.

Features

On-board modules
- Thales EXS82-W, a Low Power Wide Area (LPWA) Wireless IoT module that allows connections to the LTE CAT-M1, CAT NB1/2, and 2G networks
Power saving modes
LTE bands that allows multiple regions coverage
Dual SMA antenna connectors

USB connectivity
Visual network and status indication
UART, USB interface
mikroBUS compatibility
57.15mm x 25.4mm click board size
3.3V, 5V input voltage

Applications

Small, battery-operated devices in remote locations like smart meters, asset trackers, healthcare apps, wearables, smart city solutions, and many more.
