Mikroe LR 2 Click

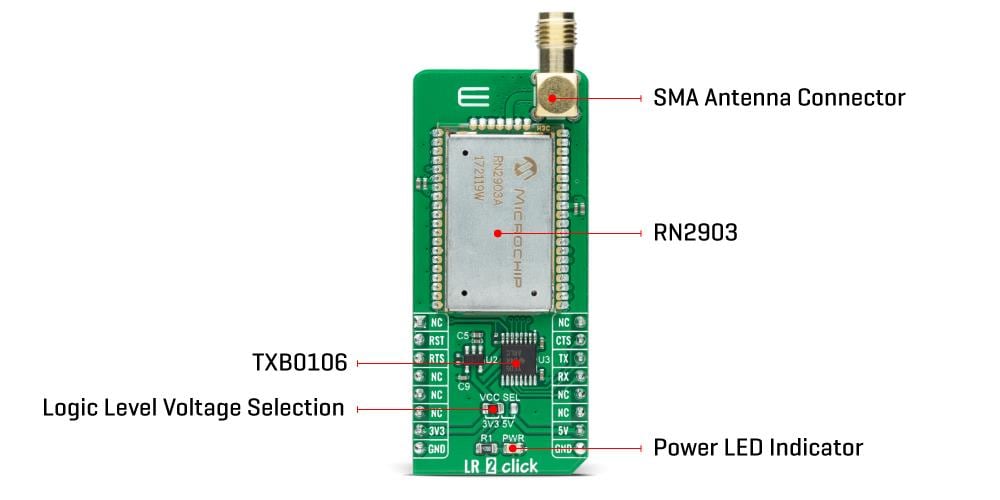

Mikroe LR 2 Click features the Microchip Technology RN2903 RF technology-based SRD transceiver, which operates at a frequency of 915MHz. The board features an embedded LoRaWAN Class A compliant stack. It provides a long-range spread spectrum communication with high interference immunity. The RN2903 module is fully compliant with the United States (FCC) and Canada (IC) regulations. It’s combined with the advanced and straightforward command interface allowing easy integration into the final application.

Features

On-board modules
- Microchip Technology RN2903 – low-power long-range RF technology-based transceiver module
North America radio region
Modem is compliant for use in USA (FCC), Canada (IC), Australia, and New Zealand
Sensitivity -146 dBm
Embeds LoRaWAN® Class A

Protocol stack
UART interface
mikroBUS compatibility
L (57.15mm x 25.4mm) click board size
3.3V or 5V input voltage

Applications

Long-range IoT networks
Security systems
Alarm networks

Building control
M2M interfaces
