Mikroe Load Cell 2 Click

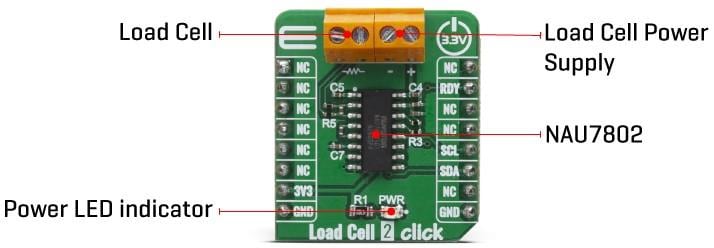

Mikroe Load Cell 2 Click is a weight measurement click with a load cell element that measures the weight of an object. The click is used with the strain gauge type of load cells. It has an external differential reference voltage range from 0.1V to 5V. The click features the Nuvoton NAU7802 24-bit analog-to-digital converter (ADC), operated via a simple I2C command. This sensor is ideal for small designs, and has a high level of integration that allows a minimal number of external components.

Features

  • On-board modules: NAU7802, a precision, low-power, 24-bit ADC with an onboard low-noise programmable gain amplifier (PGA), onboard RC or Crystal oscillator, and a precision 24-bit sigma-delta (Σ-Δ) ADC
  • Interface: I2C
  • Compatibility: mikroBUS
  • Click board size: S (28.6mm x 25.4mm)
  • Input voltage: 3.3V

Applications

  • Complete front-end solution for bridge/sensor measurements in
    • Weight scales
    • Strain gauges
    • High resolution, low sample rate applications

Overview

Mikroe Load Cell 2 Click
