Mikroe LightRanger 5 Click

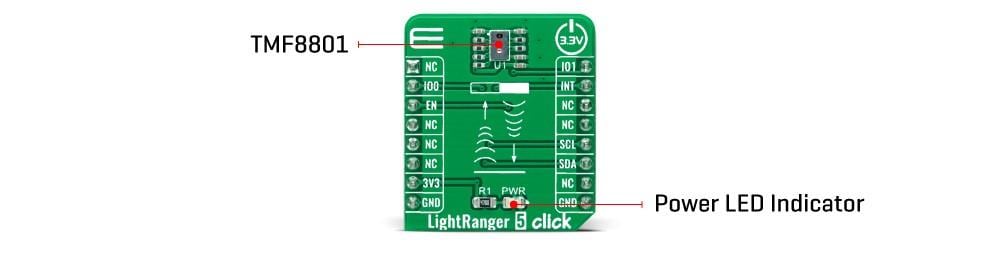

Mikroe LightRanger 5 Click contains a ranging sensor with multi-target detection. The board features the AMS-TAOS TMF8801 dToF (direct time of flight) optical distance sensor achieving up to 2500mm target detection distance. It offers highly accurate depth accuracy detection through a sub-nanosecond light pulse and an anti-aliasing “stop-watch” method to measure the round-trip time of the pulse. It makes precise distance measurements up to a 2500mm distance range. It’s capable of operation in dark environments and in the presence of sunlight.

Features

On-board modules
- AMS-TAOS TMF8801 dToF (direct time of flight) optical distance sensor achieving up to 2500mm target detection distance
Direct ToF technology with high sensitivity SPAD detection
Fast Time-to-Digital Converter (TDC) architecture
Enables dark and sunlight
Environment distance measurement within ±5%

20mm to 2500mm distance sensing
I²C interface
mikroBUS compatibility
S (28.6mm x 25.4mm) click board size
3.3V input voltage

Applications

Presence (object) detection
Distance measurement
Industrial ranging

Inventory control
Optical switch
