Mikroe ISO ADC Click

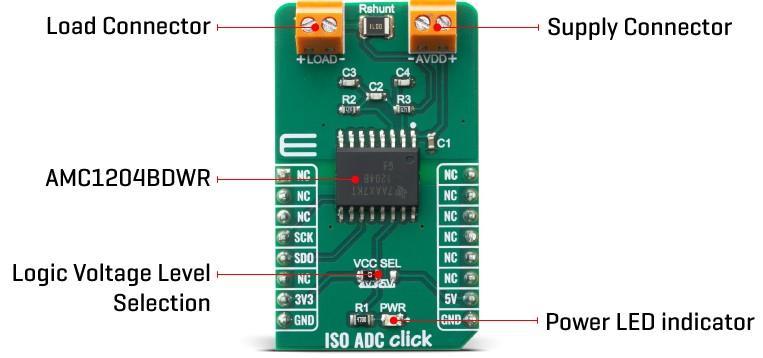

Mikroe ISO ADC Click is a current-shunt measurement device with an isolated delta-sigma modulator. The board uses the Texas Instruments AMC1204BDWR for measuring the small signal of a shunt resistor across an isolated barrier. ISO ADC Click contains a shunt resistor typically used to sense currents in motor control inverters, green energy generation systems, and other industrial applications.

Features

  • On-board modules: Texas Instruments AMC1204BDWR, Isolated Delta-Sigma Modulator for Current-Shunt Measurement
  • Interface: SPI
  • Compatibility: mikroBUS
  • Click board size: M (42.9mm x 25.4mm)
  • Input voltage: 3.3V or 5V

Applications

  • Sense currents in motor control inverters
  • Green energy generation systems
  • Industrial

Overview

Mikroe ISO ADC Click
