Mikroe I2C MUX Click

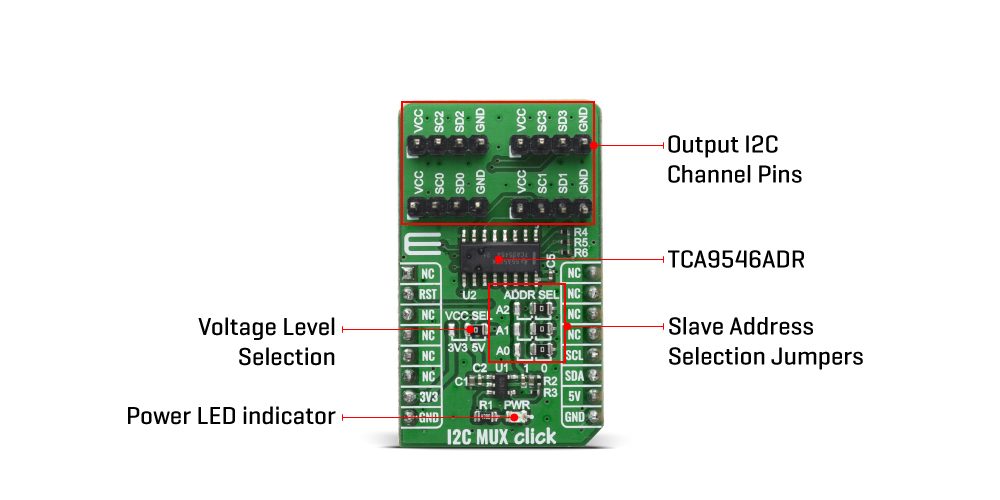

Mikroe I²C MUX Click is intended for applications with I²C slave address conflicts (multiple, identical temp sensors). The click features a quad bidirectional translating TI TCA9546A switch controlled via the I²C bus. The click has three address jumpers, allowing up to eight TCA9546A devices on the same bus. I²C MUX click allows voltage translation between 1.8V, 2.5V, 3.3V, and 5V buses, and also supports hot insertion. The TCA9546A works on a 0-400kHz clock frequency range. It is ideal for communication with numerous devices that share the identical slave address on the same bus.
