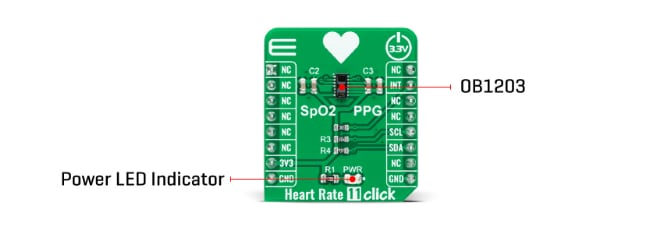

Mikroe Heart Rate 11 Click

Mikroe Heart Rate 11 Click is designed for heart rate monitoring applications. The Heart Rate 11 Click incorporates the Renesas OB1203 multi-channel light sensor (LS/CS), proximity sensor (PS), and photoplethysmography sensor (PPG). The OB1203 offers configurability as an ambient light sensor to measure ambient light similar to the human eye experience or as an RGB color sensor. Additionally, the OB1203 launches communication to and from the module through a standard I²C-compatible interface and has a fully integrated biosensor for reflective photoplethysmography.

The Mikroe Heart Rate 11 Click is designed to distinguish human heart rate (HR), oxygen saturation (SpO2), respiration rate, and heart rate variability (a measure of stress).

Features

On-board modules
- Renesas Electronics OB1203 Fully integrated all-in-one biosensor module
SpO2 measurement behind IR transmissive but visibly dark ink
High illuminance accuracy across various light sources
High sensitivity and resolution
Low power consumption

Object movement detection
I²C interface
mikroBUS compatibility
S (28.6mm x 25.4mm) Click board size
3.3V input voltage

Applications

Human heart rate (HR)
Oxygen saturation (SpO₂)

Respiration rate
Heart rate variability (a measure of stress)
