Mikroe HAPTIC 2 Click

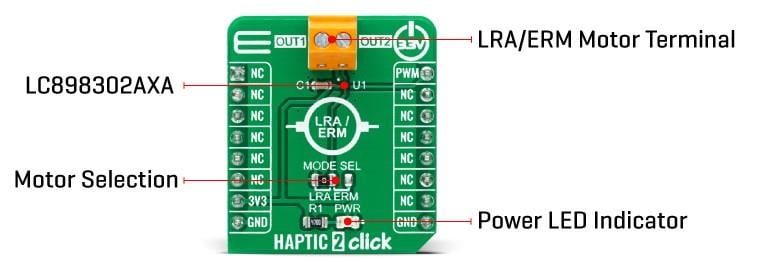

Mikroe HAPTIC 2 Click features the ON Semiconductor LC898302AXA motor driver dedicated to LRA and ERM applications. The HAPTIC 2 is controlled by only one pin. This allows crisp vibration thanks to automatic braking and over-driving feature and ignores the deviation of resonance frequency thanks to auto-tuning function. The original driving waveform will enable reduced power consumption and is helpful to maintain battery lifetime.

Features

On-board modules
- ON Semiconductor LC898302AXA linear vibration motor driver dedicated to LRA (Linear Resonant Actuator) and ERM (Eccentric Rotating Mass) applications
Low power consumption
Automatic adjustment to the resonance frequency for LRA
Adjustable drive and brake voltage

Low driving noise
Available to drive an LRA and ERM
PWM interface
mikroBUS compatibility
S (28.6mm x 25.4mm) click board size
3.3V input voltage

Applications

Indicator systems
Game consoles

Training equipment/simulators with haptics function
Robotics and mechatronics
